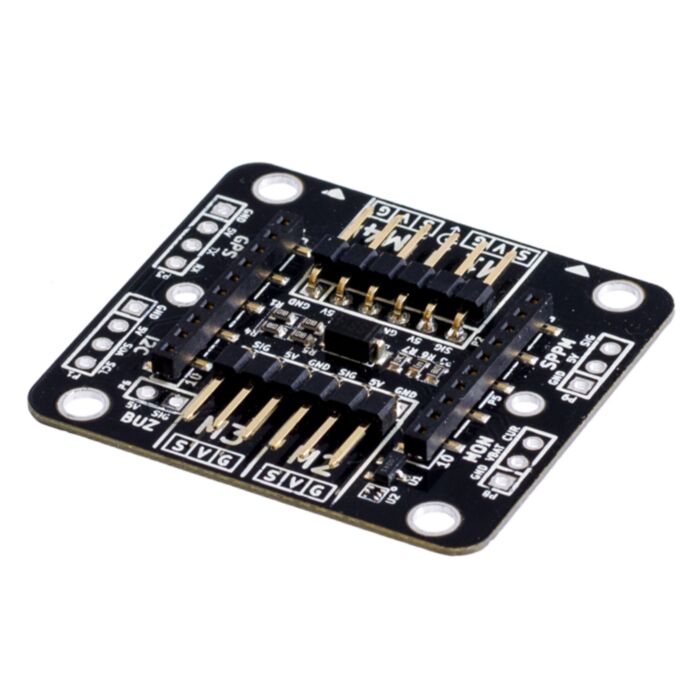

Crazyflie 2.0 - BigQuad Deck (Seeed Studio)

SKU: SS102990227 Brand: Seeed Studio

With the BigQuad deck you can transform your Crazyflie 2.0 to a bigger quad by connecting external ESCs (Electronic Speed Controller) to the breakout connectors...

Special Price $12.71 AUD, inc GST

Regular Price $14.95 AUD, inc GST

$11.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

With the BigQuad deck you can transform your Crazyflie 2.0 to a bigger quad by connecting external ESCs (Electronic Speed Controller) to the breakout connectors on the deck. The autodetection of the deck makes this transformation possible to do in seconds. The deck contains breakout header connectors for additional accessories such as external receiver (CPPM input) and GPS. It also has the possibility to monitor battery voltage and current.

This product is intended to be used together with the Crazyflie 2.0 quadcopter and uses its expansion board system. Please have a look at the buyers guide for more info about the Crazyflie 2.0 ecosystem. For more information about how to use the expansion decks check out the getting started with expansion deckspage.

FEATURES

4 x ESC connectors
0.1" header mounting holes for additional connectivity:
- CPPM input (3 pin)
- GPS input (4 pin)
- I2C expansion (4 pin)
- Battery and current monitoring input (3 pin)
- Buzzer output (2 pin)
Connect one or two additional decks
Automatic detection of expansion deck

ELECTRICAL SPECIFICATION

Power Crazyflie 2.0 with 4.5V - 5.5V from ESC.
BiqQuad deck inputs are 5V tolerant.
Battery voltage monitoring divider scaled for input up to 23V.
Current monitoring input 0V - 3V.
BiqQuad deck and Crazyflie 2.0 current consumption:
- ~120mA without any additional decks.
- Up to 500mA if Crazyflie 2.0 battery is connected and charging.
1-wire memory for automatic expansion deck detection.

MECHANICAL SPECIFICATION

Weight: 3.8g
Size (WxHxD): 36x40x5mm
M3 mounting holes placed 30.5mm square.
Designed for mounting above or under the Crazyflie 2.0

PART LIST

1x BigQuad deck
4x M2x4 nylon screw
2x M2x6 hex spacer

RESOURCE

SUPPORT

If you have any further question for technical support, please contact [email protected].
