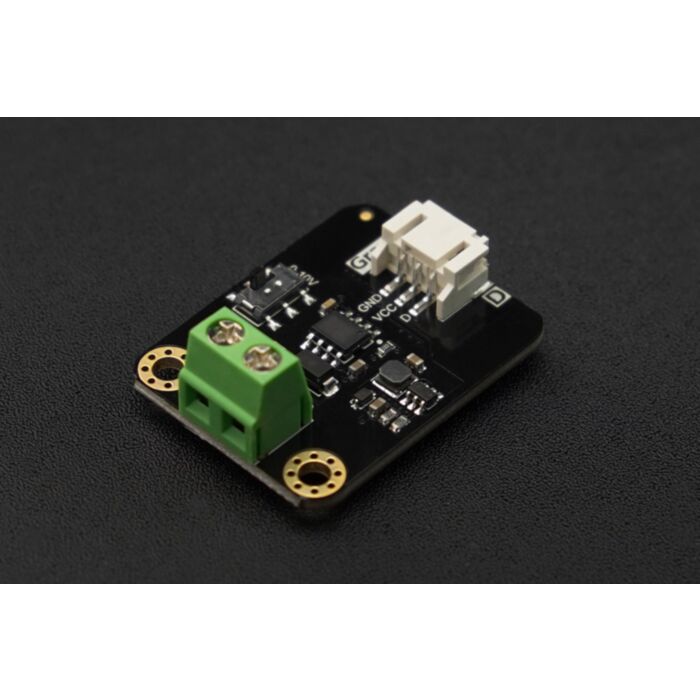

Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module

SKU: DFR1036 Brand: DFRobot
PWM signal-driven, easy and convenient. Single-channel 0-10V industrial voltage DAC module. Used for automation scenarios like lighting adjustment,...
$14.40 AUD, inc GST
$13.09 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 14 and Oct 17

Quantity Discounts:

  • 10-25 $12.70 (exc GST)
  • 25+ $12.44 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a 1-channel DAC module with PWM communication, a resolution of 8-bit, and an accuracy of 0.2%, capable of generating analog voltage outputs of 0-10V or 0-5V. The 0-10V or 0-5V voltage output is a standard driving method. It can be widely used in automation control scenarios such as lighting adjustment, frequency converters, valve regulation, and pump control,etc. This product can drive a variety of 0-10V or 0-5V controlled devices available in the market through Arduino programming.

PWM signal drive allows the module to be controlled by MCU digital ports, providing a simple and convenient usage.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.

Functional Diagram of GP8101S: 1-Channel PWM to 0-5V/10V DAC Module

Functional Diagram of Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module

Wiring Diagram of GP8101S: 1-Channel PWM to 0-5V/10V DAC Module

Wiring Diagram of Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module and Arduino UNO

We provide various models of DAC modules. If you need a different model, please check the selection guide:

Click here to get Selection Guide of DAC Modules

Features

  • Support 3.3V-5V power supply.
  • Output voltage error is less than 0.2%.
  • Output voltage linearity error is 0.1%.
  • Two channels of voltage output, either 0-5V or 0-10V, enabling connection and control ofstandard analog voltage devices.
  • Gravity interface, PWM communication, Arduino control, suitable for program automationcontrol.
  • PWM signals can be utilized to drive the module, enabling it to be controlled simply by thedigital port of the MCU.
  • Applications

  • Automatic light adjustment
  • Variable frequency drive (VFD)
  • Automatic valve regulation
  • Automatic water pump control
  • Specification

  • Operating voltage: 3.3V to 5V
  • Communication Method: PWM
  • Chip Type: GP8101S
  • Resolution: 8-bit
  • Output Voltage: 0-5V or 0-10V
  • Number of channels: 1 channel
  • Value Range: 0 - 255 corresponding to 0-5V or 0-10V
  • Output voltage: 0.2%
  • Output voltage linearity error: 0.1%
  • Documents

  • Product wiki
  • Parts List

  • GP8101S: 1-Channel PWM to 0-5V/10V DAC Module ×1
  • Gravity-3Pin Analog Sensor Cable ×1
