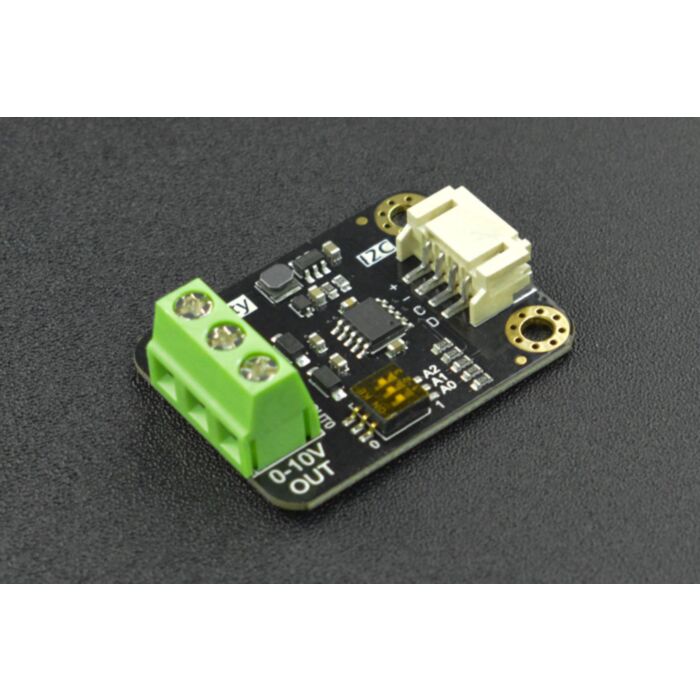

2-Channel I2C DAC Module (0-10V)

SKU: DFR0971 Brand: DFRobot
This 2-Channel I2C to 0-10V DAC module can output a voltage of 0-5V or 0-10V, which can be widely used with most 0-10V devices on markets such as light...
$17.74 AUD, inc GST
$16.13 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 30th of May

Quantity Discounts:

  • 10-25 $15.65 (exc GST)
  • 25+ $15.32 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 2-Channel I2C DAC module can output a voltage of 0-10V, which is a standard driver in industrial applications. It can be widely used with most 0-10V devices on markets such as light controllers, inverters, valves, pumps, etc., by Arduino programming.

Besides, this module supports 8 different I2C addresses, which can be changed using the on-board DIP switch, allowing a cascade of 16 devices.

2-Channel 0-10V I2C DAC Module

Features

  • Support 3.3V-5V power supply
  • Output voltage error is less than 0.5%
  • Output short-circuit protection
  • Two-channel 0-5V/0-10V output for connecting to and controlling standard analog voltage devices
  • Gravity interface, I2C communication, Arduino control, suitable for program automation control
  • Adjustable 8-way I2C addresses, able to control 16 devices at the same time

Applications

  • Intelligent function signal generator
  • Automatic controlling of lighting or fountain
  • Automatic and quick transformation of small equipment
  • Automatic debugger for electromechanical equipment
  • Transformation of small test equipment

Specification

  • Operating Voltage: 3.3V~5V
  • I2C Interface: PH2.0-4P (Gravity Line Sequence)
  • Chip Type: GP8403
  • Input Signal: 12Bit (0x000 - 0xFFF)
  • Input I2C Signal High Level: 2.7V - 5V
  • VOUT0 Output Voltage: 0 - 10V
  • VOUT1 Output Voltage: 0 - 10V
  • Output Voltage Error: < 0.5%
  • Linearity Error of Output Voltage: 0.1%
  • Power Consumption: < 4mA
  • Output Short-circuit Protection

Documents

Parts List

  • 2-Channel 0-10V I2C DAC Module × 1
  • Gravity I2C/UART Sensor Cable × 1
