Gravity: GNSS GPS BeiDou Positioning Module with RTC - I2C&UART

SKU: DFR1103 Brand: DFRobot

The module combines GNSS positioning and RTC functionality. Provides precise longitude, latitude, and altitude data. Compatible with Arduino, ESP32, and...

Special Price $34.90 AUD, inc GST

Regular Price $44.60 AUD, inc GST

$31.73 AUD, exc GST

Special pricing ends 19 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 28 and May 31

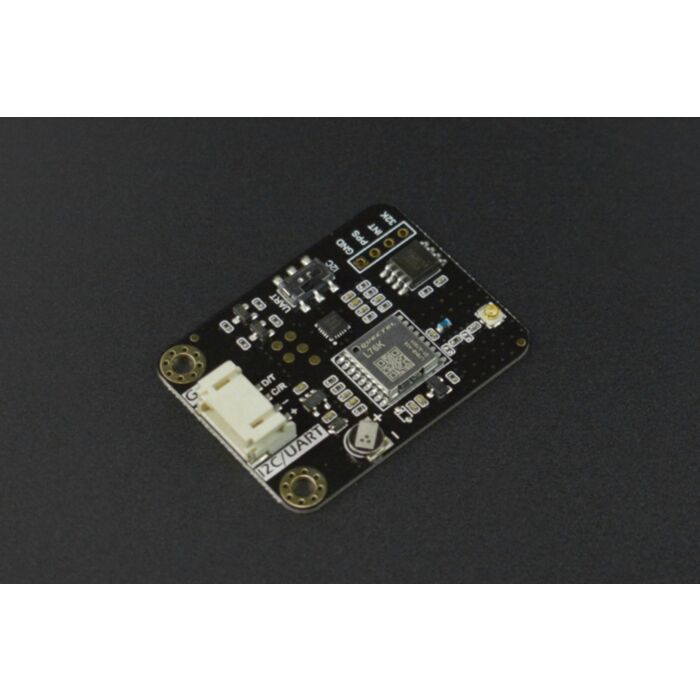

The Gravity GNSS Positioning & Timing Module integrates satellite positioning functionality anda real-time clock (RTC). The module automatically obtains satellite time based ona preset calibration period and accurately calibrates the onboard RTC chip.This calibration effectively eliminates time errors caused by the RTC chip duringextended operation or accidental situations.

The system automatically cuts off power to the GNSS chip after calibration,significantly reducing overall system power consumption compared to GNSS-only solutions.Additionally, the user has the option to use the module as a positioning module by setting GNSS active all the time,providing accurate longitude,latitude, time, altitude, and other data.

The module offers two data output types: I2C and UART. It is compatible with Arduino, ESP32 ,Raspberry Pi and other mainstream control devices. Ideal for scenarios requiring extended working hours and high-precision time,such as astronomical observation timers, NTP servers, and outdoor wireless sensor time synchronization.

The differences between Gravity: GNSS Module with RTC Function and Gravity: GNSS Receiver Module:

Unlike the traditional Gravity: GNSS GPS BeiDou Receiver Module - I2C&UART,which is a single GNSS module with high power consumption and is only suitable for outdoor scenarios,this Gravity: GNSS Module with RTC Function offers a significant improvement.

The Gravity: GNSS GPS BeiDou Positioning Module with RTC Function has the ability to turn off the GNSS when not in use, leaving only the RTC module to maintain time, resulting in lower power consumption.

Connection Diagram of Gravity: GNSS Positioning Timing Module and DFRduino UNO R3

Figure: Wiring Diagram of Gravity: GNSS Positioning Timing Module and UNO R3

Detection Results Display (Timing & Positioning)

Figure: Positioning &Timing Results Display

Features

Integrated GNSS and RTC Functionality
Automatic Satellite Time Calibration
RTC Chip Calibration
Power Efficiency
Satellite Signal Loss Mitigation

Specification

Operating Voltage: 3.3~5V DC
Output Signal: I2C/UART
GNSS IC: L76K
GNSS Accuracy: 2.0m CEP
First positioning time: 30s (Cold start), 2s (Hot Start)
Operation current: GNSS enable: 46mA GNSS chip off <1mA
Antenna Interface: IPEX 1
Antenna Frequency: 1561~1575.42MHz±3MHz
RTC IC: SD3031
Time range: Year 2000~2099
Time Accuracy: ±3.8ppm @25?
PCB Size: 32mm*42mm

Documents

Parts List

Gravity: GNSS Positioning & Timing module x1
GPS / BeiDou Active Ceramic Antenna (IPEX1 Connector) x1
Gravity 4P sensor cable x1
10 P connector x1
