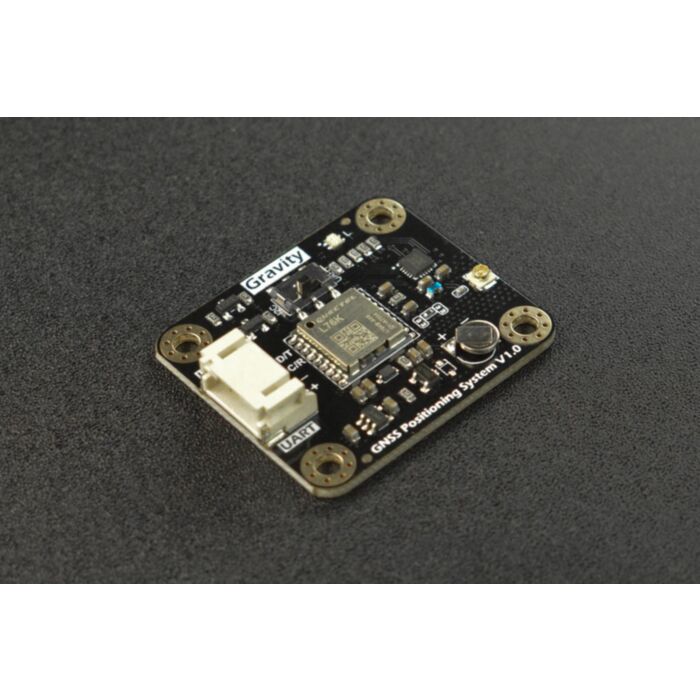

Gravity: GNSS GPS BeiDou Receiver Module - I2C&UART

SKU: TEL0157 Brand: DFRobot

This GNSS receiver module from DFRobot supports BeiDou, GPS, Galileo and other multi-satellite systems. It compatible with Arduino, ESP32, micro:bit and...

$31.05 AUD, inc GST

$28.23 AUD, exc GST

Available with a lead time
Expect dispatch between May 31 and Jun 06

Quantity Discounts:

10-25 $27.38 (exc GST)
25+ $26.82 (exc GST)

Global Navigation Satellite Systems (GNSS) provide critical timing and positioning functions for device operations.

This Gravity: GNSS positioning module from DFRobot supports BeiDou, GPS, GLONASS and other multi-satellite systems. It is capable of quick delivery of position data like longitude, latitude, altitude and time. Compared with traditional single GPS positioning, the multi-system combination embraces higher precision and faster speed thanks to the increased number of visible and available satellites, which ensures stable and accurate performance even in complex urban environments.

With I2C and UART data outputs, this GNSS positioning module works well with main-controllers like Arduino, ESP32, and Raspberry Pi, which can be widely applied to outdoor positioning scenarios such as vehicle navigation, handheld positioning tracker, item tracking and weather station.

I2C Connection Diagram

UART Connection Diagram

Features

Supports both single and multiple systems positioning

Higher precision and faster speed than traditional single GPS positioning

Applications

Vehicle navigation

Handheld positioning tracker

Item tracking and weather station

Specification

Operating Voltage: 3.3 to 5.5V DC

Output Signal: I2C/UART

Positioning Accuracy: 2.0m CEP

Time for First Positioning: 30s for cold start; 2s for hot start

Power Consumption: 40mA

Antenna Interface: IPEX1

Antenna Frequency: 1561-1575.42MHz±3MHz

Dimension: 27mm*37mm/1.06*1.46"

Documents

Product wiki

Datasheet

Schematics

Dimensions & Component Layout

Parts List

Gravity: GNSS Positioning Module × 1

GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector) × 1

Gravity 4P Sensor Cable × 1
