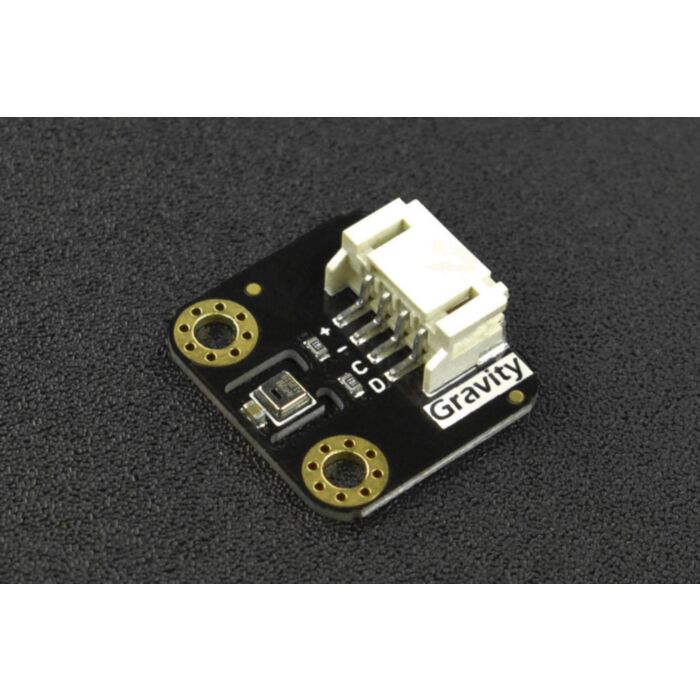

Gravity: AHT20 Temperature and Humidity Sensor

Rating:
100% of 100
SKU: SEN0528 Brand: DFRobot
The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity...
$7.85 AUD, inc GST
$7.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $6.92 (exc GST)
  • 25+ $6.78 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2V-5V. And with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40°C ~ +85°C.

Gravity: AHT20 Temperature and Humidity Sensor

Connection Diagram

Features

  • Digital output, I2C interface
  • Excellent long-term stability
  • Fast response, strong anti-interference, and adaptability
  • Gravity interface, simple wiring, no soldering required

Applications

  • HVAC
  • Dehumidifier
  • Testing Equipment
  • Consumer Appliances
  • Automobiles
  • Automatic Control
  • Data Loggers
  • Weather Control

Specification

Module Parameters

  • Operating Voltage: DC2V-5V
  • Output Signal: I2C
  • I2C Address: 0x38
  • Dimension: 30mm×20.5mm/1.18×0.81"

AHT20 Chip Parameters

Relative Humidity

  • Resolution: 0.024 %RH
  • Accuracy Error: ±2 %RH
  • Repeatability: ±0.1 %RH
  • Hysteresis: ±1 %RH
  • Non-linear: ±0.1 %RH
  • Response Time: 8S
  • Operating Range: 0~100 %RH
  • Long-term Drift: <0.5 %RH/yr

Temperature

  • Resolution: 0.01°C
  • Accuracy Error: ±0.3°C
  • Repeatability: ±0.1°C
  • Hysteresis: ±0.1°C
  • Response Time: minimum 5S, maximum 30S
  • Operating Range: -40°C ~ 85°C
  • Long-term Drift: <0.04°C/yr

Documents

Parts List

  • Gravity: AHT20 Temperature and Humidity Sensor × 1
  • Gravity-4P I2C/UART Sensor Cable × 1

This product is listed in:

Sensors>Weather>Temperature & Humidity
