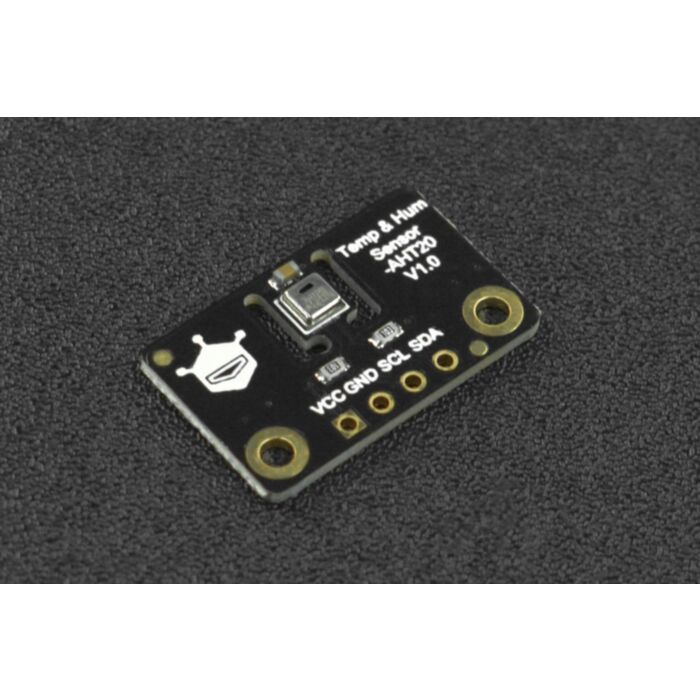

Fermion: AHT20 Temperature and Humidity Sensor (Breakout)

Rating:
100% of 100
SKU: SEN0527 Brand: DFRobot
The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity...
$6.95 AUD, inc GST
$6.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $6.13 (exc GST)
  • 25+ $6.00 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2V - 5V. And with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40°C ~ +85°C.

This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles, and so on.

Fermion: AHT20 Temperature and Humidity Sensor

Connection Diagram

Features

  • Digital output, I2C interface
  • Excellent long-term stability
  • Quick response and strong anti-interference ability
  • Applications

  • HVAC
  • Dehumidifier
  • Testing and Inspection Equipment
  • Consumer Appliances
  • Automobiles
  • Automatic Control
  • Data Loggers
  • Weather Stations
  • Specification

    Module Parameters

  • Operating Voltage: DC2V~5V
  • Output Signal: I2C
  • I2C Address: 0×38
  • Dimension: 30mm×20.5mm/1.18×0.81"

    AHT20 Chip Parameters

    Relative Humidity

  • Resolution: 0.024 %RH
  • Accuracy Error: ±2% RH
  • Repeatability: ±0.1 %RH
  • Hysteresis: ±1 %RH
  • Non-linear: ±0.1 %RH
  • Response Time: 8S
  • Operating Range: 0~100 %RH
  • Long-term Drift: <0.5 %RH/yr

    Temperature

  • Resolution: 0.01°C
  • Accuracy Error: ±0.3°C
  • Repeatability: ±0.1°C
  • Hysteresis: ±0.1°C
  • Response Time: minimum 5S, maximum 30S
  • Operating Range: -40°C ~ 85°C
  • Long-term Drift: <0.04°C/yr
  • Documents
  • Product wiki
  • 2D Dimensions
  • 2D Dimensions_CAD
  • 3D STP
  • Circuit Diagram SCH
  • Parts List

  • Fermion: AHT20 Temperature and Humidity Sensor × 1
  • 2.54-4P Black Single-row Pin Header × 1
