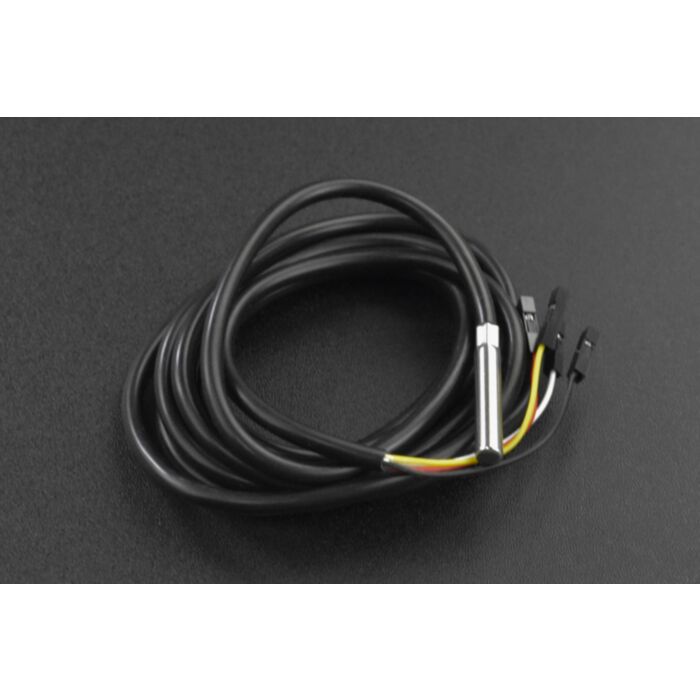

I2C Temperature & Humidity Sensor (Stainless Steel Shell)

Rating:
100% of 100
SKU: SEN0546 Brand: DFRobot
The I2C Temperature & Humidity Sensor (Stainless Steel Shell) adopts 304 stainless steel for its housing to ensure good impact resistance, heat...
$12.15 AUD, inc GST
$11.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $10.72 (exc GST)
  • 25+ $10.49 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This I2C digital temperature & humidity sensor offers high accuracy of ±3.0RH% for humidity and ±0.5°C for temperature and features a user-programmable humidity & temperature alarm function.

Its housing is made of 304 stainless steel to ensure good impact resistance, heat resistance, low temperature, and chemical resistance. The sensor output is designed as DuPont 2.54 connector for easy wiring. Also, there are two built-in 4.7K pull-up resistors and one 100nF filtering capacitor so the sensor can be directly used with microcontrollers like Arduino.

This temperature & humidity sensor can be applied to electronic, medical, automotive, industrial, weather, and other fields, including home appliances like HVAC, dehumidifiers and refrigerators, testing & inspection equipment, and other relevant temperature & humidity measurements and controls.

Pinout

Connection Diagram

Features

  • 304 stainless steel, good impact resistance
  • Low power consumption, high accuracy
  • User-programmable temperature & humidity alarm response address (ARA)
  • Applications

  • HVAC
  • Dehumidifiers and refrigerators
  • Testing & inspection equipment
  • Other relevant temperature & humidity measurements and controls
  • Specification

  • Operating Voltage: 2.5V~5.5V
  • Standby Current: 0.05uA (Typical), 0.3uA (Max)
  • Average Operating Current: 1.5uA (Typical), 3.0uA (Max)
  • Temperature Measurement Range (°C): -40°C ~ 125°C
  • Temperature Measurement Accuracy (°C): ±0.5°C@0°C~50°C
  • Humidity Measurement Range (%RH): 0%RH~100%RH
  • Humidity Measurement Accuracy (%RH): ±3.0%RH@20%RH~80%RH
  • Communication: I2C
  • Connector: DuPont 2.54
  • Reserved DuPont Wire Length: 5cm
  • Wire Length: 1.5m
  • Housing: 304 stainless steel
  • Wire Sequence: red VCC; black GND; white SCL; yellow SDA
  • Documents

  • Product wiki
  • Datasheet
  • STM32_cht8305
  • Parts List

  • I2C Temperature & Humidity Sensor (Stainless Steel Shell) x1
