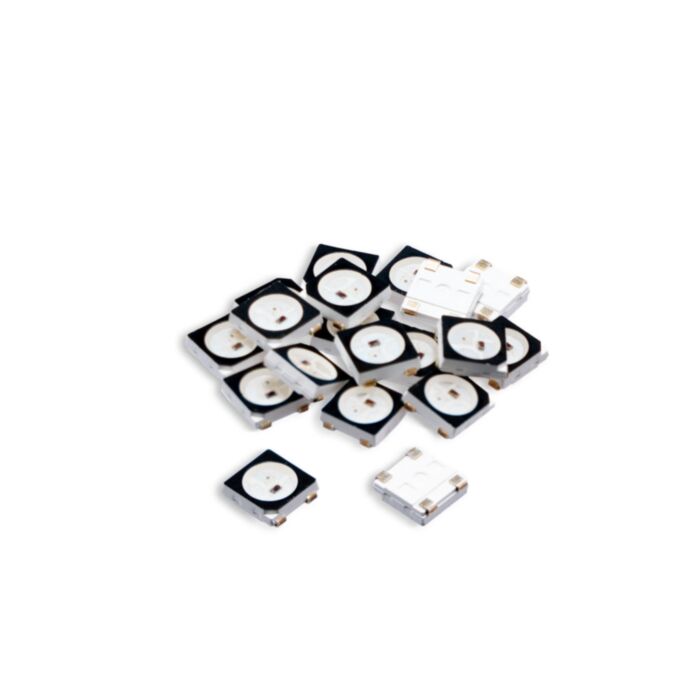

GlowBit LED 20 Pack - Black (WS2812B v5) NeoPixel Compatible

Rating:
100% of 100
SKU: CE08672 Brand: GlowBit

A perfectly sized pack of vibrant SMD GlowBit LEDs ready to be used in your PCB designs!

$10.40 AUD, inc GST
$9.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

  • 10-25 $7.95 (exc GST)
  • 25+ $6.81 (exc GST)
- +

98 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Feature these vibrant addressable GlowBit LEDs on your own PCB designs!

We stock these LEDs with a black and white front face. They are packaged in cut-tape.

These modern WS2812Bv5 LEDs are compatible with NeoPixel and other WS2812B libraries. This most recent v5 technology boasts wider input and logic voltage ranges, and lower current consumption.

Check out our KiCAD libraries linked in the resources section for an OpenSource hand-solder and stencil footprint.

Features:

Technical details:

  • Moisture Sensitivity Level (MSL) 5a (24hr @ 30 °C/60%RH). These are moisture-sensitive components cut from a reel. They may be soldered immediately by hand, or on a hotplate. Dry-baking is strongly recommended before oven reflow soldering or hot-air rework.
  • Dimensions: 5mm x 5mm
  • Supply (Vdd): We have found these work reliably at 3.3 to 5 VDC.
  • Logic: 2.7 to Vdd + 0.7 V
  • Current Draw (Max, per LED): 35mA

Resources:
