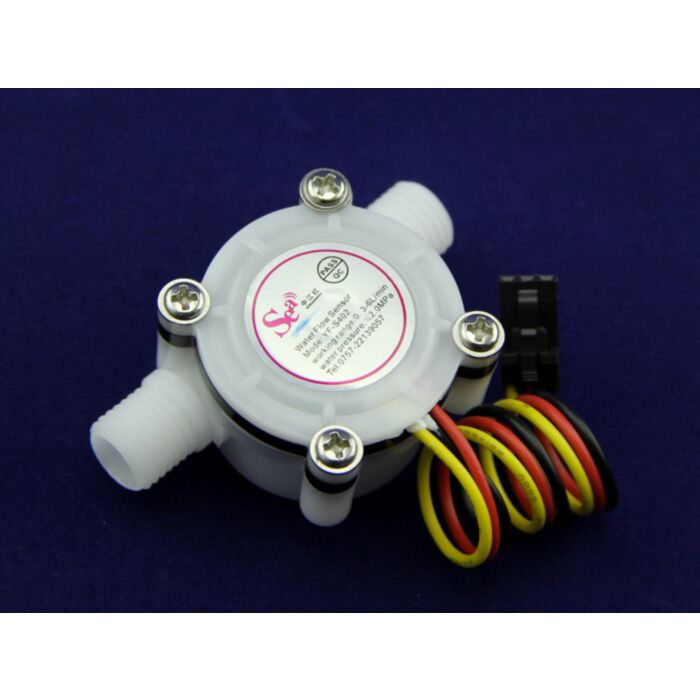

M11x1.25 Water Flow Sensor (Seeed Studio)

SKU: SS314150002 Brand: Seeed Studio

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed...

$21.70 AUD, inc GST

$19.73 AUD, exc GST

Quantity Discounts:

10-25 $18.94 (exc GST)
25+ $18.35 (exc GST)

Out of Stock

Note: This product previously came with Male 1/4" BSPP threads. It now comes with M11x1.25mm threads.

This water flow sensor consists of a plastic body, a rotor, and a hall-effect sensor. When water flows through the rotor, the rotor rotates. Its speed changes proportionally to the flow rate. The hall-effect sensor outputs the corresponding pulse signal. Typical applications for this sensor include volume measurement in a water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.

Features

Compact, Easy to Install
High Sealing Performance
High Quality Hall Effect Sensor
RoHS Compliant

Specifications

Mini. Wokring Voltage: 4.5V (DC)
Max. Working Current: 15mA @ 5V DC
Working Voltage: 5V ~ 24V (DC)
Flow Rate Range: 0.3 ~ 6L/min
Load Capacity: ≤ 10mA (DC 5V)
Operating Temperature: ≤ 80°C
Liquid Temperature: ≤ 120°C
Operating Humidity: 35% ~ 90%RH
Water Pressure: ≤ 2.0MPa
Storage Temperature: -25 ~ +80°C
Storage Humidity: 25% ~ 95%RH

Documentations

This product is listed in:

Sensors>Liquid & Flow
