Gravity: Liquid Flow Sensor (G1/2)

Skip to the beginning of the images gallery

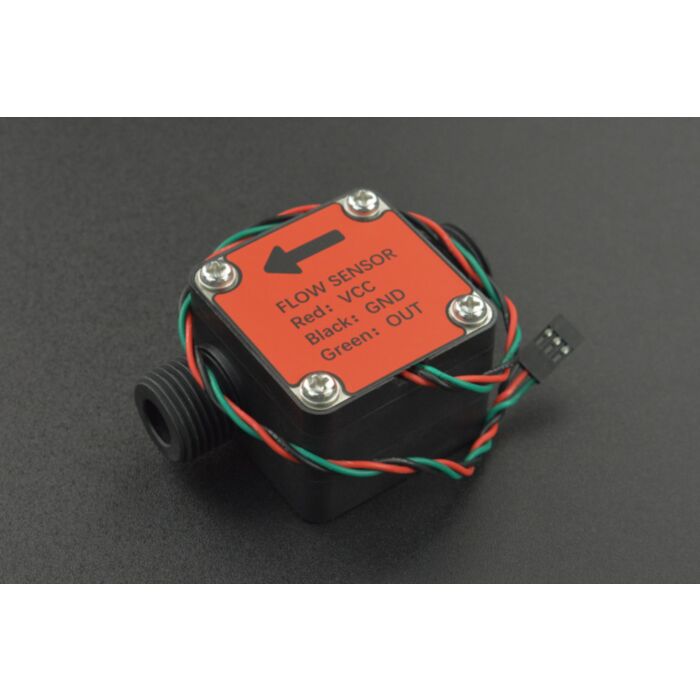

Gravity: Liquid Flow Sensor (G1/2)

SKU: SEN0550 Brand: DFRobot

This Gravity: electromagnetic-based liquid flow sensor can measure the flow of various liquids like water, diesel, engine oil, milk, paint, detergent and...

$33.30 AUD, inc GST

$30.27 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $29.36 (exc GST)
25+ $28.76 (exc GST)

This Gravity: Liquid Flow Sensor is designed based on the electromagnetic principle. It adopts O-ring rubber seal and uses silicone sealant at the outlet end to ensure good waterproofness. Also, it embraces high anti-electromagnetic interference and anti-vibration capabilities, offering reliable performance and long service life.

The sensor can be used with microcontrollers like Arduino UNO to measure the flow of liquids with high concentration and low viscosity like water, diesel, engine oil, milk, paint, detergent, honey, etc. (no impurity in liquid)

Gravity: Liquid Flow Sensor (G1/2)

Features

Gravity interface, easy to wire

Wide voltage of 3.5~24V

Measure the flow of the high-concentration but low-viscosity liquid

RoHS compliant

Applications

Measure the flow of liquids with high concentration and low viscosity

Specification

Operating Voltage: DC3.5~24V

Operating Current: =10mA (DC5V)

Output Mode: NPN pulse signal

Pipe Diameter: G1/2

Thread I.D.: 10mm

Thread O.D.: 20.5mm

Thread Length: 29mm

Water Pressure Resistance: =1.2MPA

Insulation Resistance: >100MO

Flow Range: 30-1200L/H

Error: ±1% (5-600L/H)

Output Pulse High Level: >DC4.7V (input voltage DC5V)

Output Pulse Low Level:

Output Pulse Duty Ratio: 50%±10%

Flow & Pulse Correlation: 1L=150 pulses

Operating Temperature: =80°C

Operating Humidity: 35%~90%RH (No condensing)

Storage Temperature: -25°~+80°C

Storage Humidity: 25%~95%RH

Dimensions: 80*47*37mm/3.15*1.85*1.46"

Documents

Product wiki

Parts List

Gravity: Liquid Flow Sensor (G1/2) × 1
