Fermion: Serial Data Logger for Arduino

Skip to the beginning of the images gallery

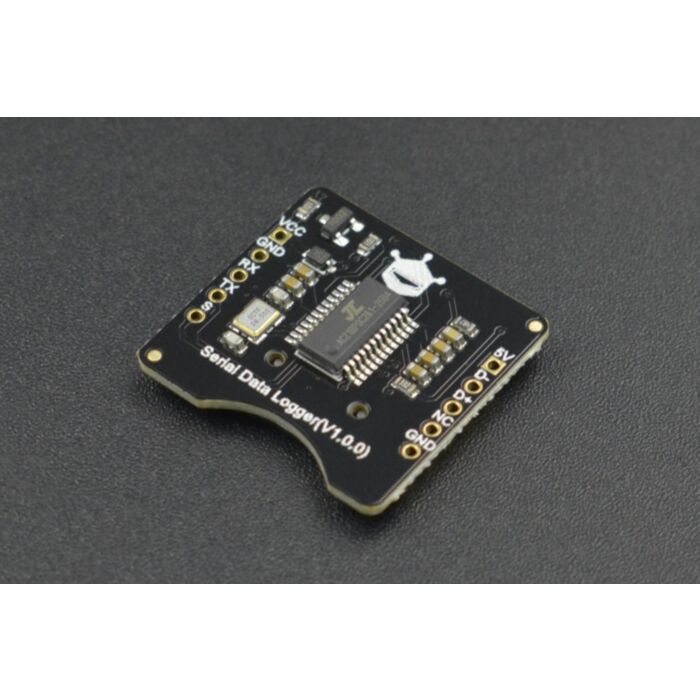

Fermion: Serial Data Logger for Arduino

SKU: TEL0148 Brand: DFRobot

This Gravity: Serial Data Logger with USB function, can store data more conveniently and is suitable for long-time environmental data recording and...

$10.65 AUD, inc GST

$9.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 23rd of May

Quantity Discounts:

10-25 $9.39 (exc GST)
25+ $9.20 (exc GST)

Compared to the previous MicroSD Card Module, this Fermion: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes.

The Serial Data Logger supports 32GB TF card, making it suitable for long-time data storage. It comes with a USB function, which means you can directly connect it to a PC to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE pin makes it easier to store data into separate files.

Connection Diagram

Pinout

Features

With USB function, no card reader required

Support multiple baud rates, with good compatibility

LED indicator for viewing data writing status visually

FAT32 file system, support 32GB TF card

Applications

Offline data collection

Capture product debug logs

Robots and drones debug

Specification

Supply Voltage: 3.3V~5V

Operating Current: 23mA

USB Protocol: USB2.0

Operating Temperature Range: -30°C ~ 85°C

Operating Humidity Range: 5%RH~85%RH

Dimension: 23.5*22.5mm/0.93*0.89”

Documents

Parts List

Fermion: Serial Data Logger x1

2.54-5P Black Single-row Connector x2
