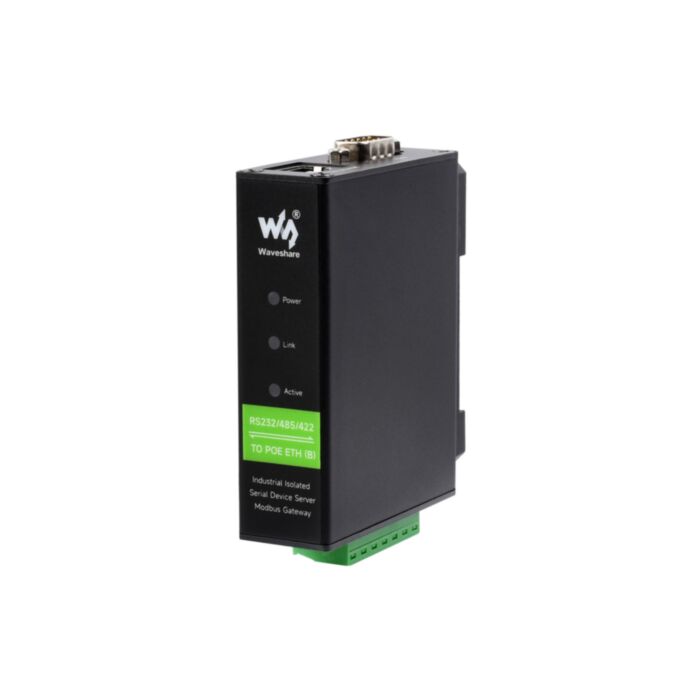

Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function

SKU: WS-23626 Brand: Waveshare
Rail-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function...
$43.05 AUD, inc GST
$39.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

Quantity Discounts:

  • 10-25 $37.96 (exc GST)
  • 25+ $37.18 (exc GST)
- +

13 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port with PoE function, uses DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

Product RS485 TO ETH (B) RS485 TO POE ETH (B) RS232/485/422 TO POE ETH (B)
Product Type Serial server, Modbus Gateway, MQTT Gateway
Basic Function Bi-directional transparent data transmission between RS485 and Ethernet Bi-directional transparent data transmission between RS232/485/422 and Ethernet
Communication interface RS485 port × 1, Ethernet port × 1 RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1
Power supply 9 ~ 24V DC screw terminal 6 ~ 36V DC screw terminal, or PoE port DC power port, 6 ~ 36V DC screw terminal, or PoE port
Isolation Protection N/C Power isolation, Signal isolation
Communication
Ethernet common network port PoE network port, support IEEE 802.3af standard
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port RS485 Isolated RS485 Isolated RS232/485/422
Serial specification
Baudrate 300 ~ 115200 bps
Parity bit none, odd, even, mark, space
Data bit 5 ~ 9 bits
Flow control N/A
Software
Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration host, web browser, device management functions library
Communication method TCP/IP direct communication, VCOM
Operating mode TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Environment requirement
Operating temperature -40°C ~ 85°C
Humidity range 5% ~ 95% relative humidity
Dimensions L × W × H: 87 × 36 × 59 mm L × W × H: 88.7 × 72.5 × 24.2 mm

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance



Onboard Interfaces





Dimensions





Resources

Wiki for Rail-Mount Serial Server, RS232/485/422
