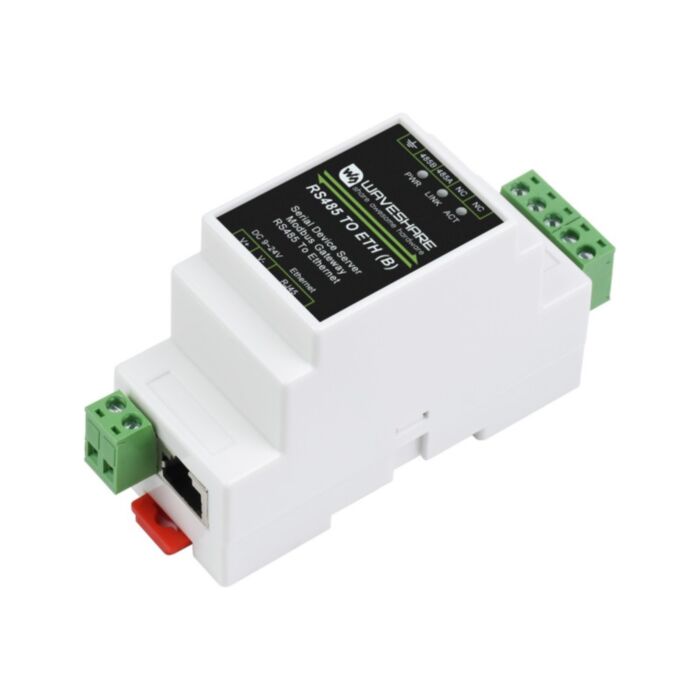

Industrial serial server, RS485 to RJ45 Ethernet, TCP/IP to serial(with POE function)
Available with a lead time
Expect dispatch between Aug 25 and Aug 28
Connect RS485 devices directly to Ethernet networks with this compact industrial serial server that offers optional Power over Ethernet (PoE) support. Its DIN-rail mount design and transparent TCP/IP-to-serial operation make it ideal for remote monitoring and seamless integration of legacy equipment into modern IoT systems.
Whether you need a reliable Modbus gateway in a factory environment or a JSON-enabled IoT bridge for intelligent instrument monitoring, this module combines robust hardware isolation with flexible power options to simplify installation and ensure uninterrupted data flow.
Technical Specifications
- Serial interface: 1 × isolated RS485 port
- Ethernet: 1 × PoE RJ45 port (IEEE 802.3af), 10/100 Mbps auto-negotiation, 2 kV surge protection
- Protocols: Bi-directional transparent serial data, Modbus TCP/RTU gateway, MQTT gateway, RS485-to-JSON conversion
- Baud rate: 300 – 115 200 bps
- Data format: 5 – 9 bits with none, odd, even, mark or space parity
- Power supply: 6 – 36 V DC via screw terminals or PoE
- Isolation: Power isolation and signal isolation for industrial safety
- Mounting: 35 mm DIN-rail case, compact footprint for tight control cabinets
How to Use/Installation
- Clip the unit onto a standard 35 mm DIN rail inside your control panel.
- Connect a PoE-capable switch or injector to the RJ45 port, or wire 6 – 36 V DC to the screw-terminal power input.
- Wire your RS485 A/B lines to the isolated terminal block, observing correct polarity.
- Access the built-in web interface via its default IP address to configure TCP/IP settings and serial parameters.
- Save your settings and test data flow between your Modbus master or MQTT broker and the RS485 device.
Compatibility
- Modbus RTU/ASCII masters and slaves
- MQTT brokers such as Mosquitto or HiveMQ
- JSON parsers and HTTP clients
- IEEE 802.3af PoE switches and injectors
- Standard 35 mm DIN-rail mounting systems
What’s Included
- RS485 to PoE Ethernet serial server module
- Removable screw-terminal blocks
- DIN-rail mounting clip
- Quick-start guide
