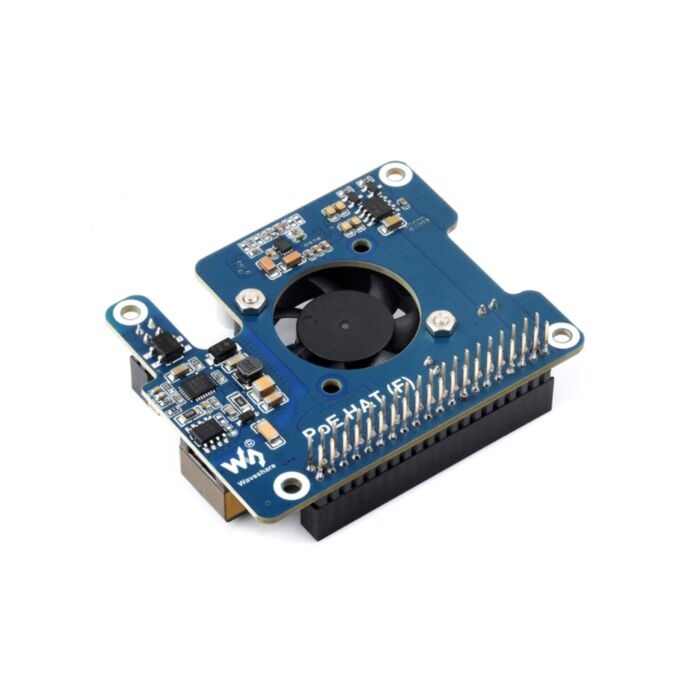

Power Over Ethernet HAT (F) For Raspberry Pi 5

Rating:
100% of 100
SKU: WS-26399 Brand: Waveshare
Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard...
$37.60 AUD, inc GST
$34.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of Jan

Quantity Discounts:

  • 10-25 $32.82 (exc GST)
  • 25+ $31.79 (exc GST)
- +

67 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standardPOE HAT for Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard

12V and 5V power outputs to support more peripherals

Features at a glance

ThePoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
  • PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
PoE power input37V ~ 57V DC in
Power outputGPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions56.5 × 70.0mm
Network standardIEEE 802.3af/at PoE
Suitable for Raspberry Pi 5

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

* for reference only, the Raspberry Pi 5 and switch are NOT included.Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)be able to power extra devices while providing stable power to Raspberry Pi

Active Cooling fan

Accelerate Cooling Effect, More Stable Performance

Onboard MP8759GD buck chip

Incorporates original voltage buck chipproviding up to 5A under sufficient heat dissipation condition

How to Install

Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT

* for reference only, please refer to the Package Content for detailed part list

Product showOutline dimensionsResources & ServicesWIKI:www.waveshare.com/wiki/PoE_HAT_(F)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
ProductSupported PiPoE standardPoE power outputFeature
Raspberry Pi PoE+ HAT3B+/4B802.3af/at5V 4ARaspberry Pi official (second generation)
PoE HAT (B)802.3af5V 2.5Awith OLED display, cost effective
PoE HAT (C)802.3af/at5V 4A / 12V 2Ahigh power, cost effective
PoE HAT (D)802.3af5V 2.5Atailored for Raspberry Pi official case, cost effective
PoE HAT (E)802.3af5V 2.5Amini body, tailored for Raspberry Pi official case, cost effective
PoE HAT (F)Raspberry Pi 5802.3af/at5V 4.5A / 12V 2Awith metal heatsink, high power, cost effective
  1. PoE HAT (F) x1
  2. Metal heatsink x1
  3. Thermal tape (3PCS) x1

Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard

Features

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
  • PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

Note: This hat does not fit into the Official Raspberry Pi 5 Case

Specifications

PoE power input 37V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions 56.5 × 70.0mm
Network standard IEEE 802.3af/at PoE

Dimensions

Resources

Wiki for Raspberry Pi 5 POE HAT (Waveshare)

Shipping List

  1. PoE HAT (F) x1
  2. Metal heatsink x1
  3. Thermal tape (3PCS) x1
