8-ch Ethernet Relay Module (B)
Available with a lead time
Expect dispatch between Jan 31 and Feb 03

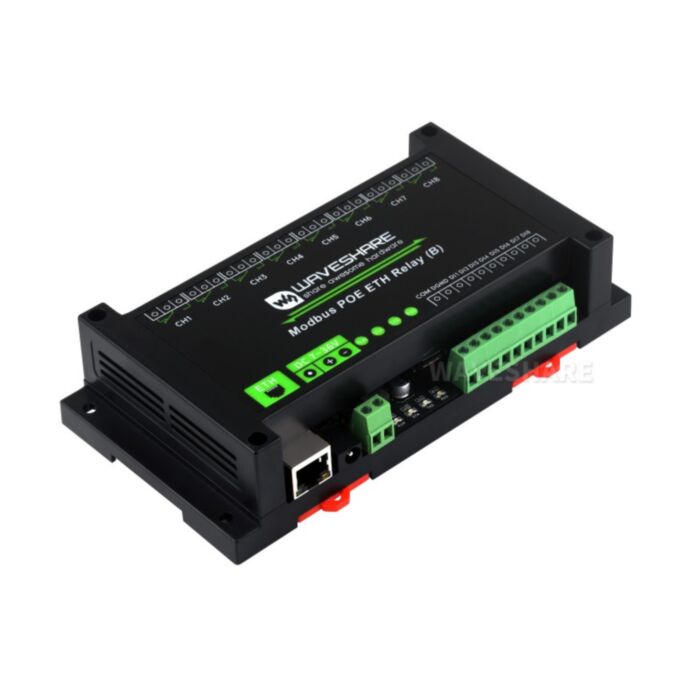

The 8-channel Ethernet Relay Module (B) is an industrial-grade relay module controlled via Ethernet with 8 digital inputs. It supports Modbus RTU/Modbus TCP protocols, features PoE power supply, and comes in an ABS rail-mount case for easy installation and industrial use.
Features
This product offers robust functionality for industrial control equipment, providing fast communication, stability, and reliability. Key features include:
- Flash-on, flash-off function for timed relay activation.
- Supports DC 7~36V wide-range power input and PoE power supply.
- MQTT protocol relay control with Alibaba Cloud MQTT application demo.
- Optocoupler isolation to prevent high-voltage circuit interference.
- Dedicated relay driver chip with built-in flyback diode protection.
- Passive and active digital input support with bi-directional optocoupler isolation and debouncing algorithm.
- Reverse-proof circuit for accidental connection protection.
- High-quality relay with contact rating: =10A 250VAC/30VDC.
- Rail-mounted ABS plastic enclosure for easy installation and safety.
- LED and network indicators for monitoring MCU status and signal transmission.
Primary Function
The module supports reading digital inputs via Modbus RTU protocol commands sent through Ethernet to control relay outputs.
Communication Modes
The module supports various communication modes:
- TCP Server
- TCP Client
- UDP Mode
- UDP Multicast
- HTTP
- MQTT
It is compatible with Modbus RTU and Modbus TCP protocols.
Configuration Methods
Supports configuration through software or a web browser, with dynamic IP assignment via DHCP and domain name connection through DNS protocol.
Power Supply Options
The module offers multiple power supply options:
- DC power port with plug support.
- Screw terminal for DC 7~36V input.
- PoE port compliant with IEEE 802.3af standards.
*External power supply adapter is not included. A 12V power supply is recommended if needed.
Digital Input
Supports passive (dry contact) and active (wet contact) digital inputs with bi-directional optocoupler isolation.
Interfaces & Indicators
The module includes multiple LED indicators for easy monitoring:
| RUN | Blinks when the Ethernet port is operating normally. |
|---|---|
| STA | Blinks when the MCU is functioning correctly. |
| TXD | Lights up during data transmission. |
| RXD | Lights up during data reception. |
| Ethernet Port Green Indicator | Indicates Ethernet connectivity status. |
