3 Channel Relay Module Shield Smart Home for Raspberry Pi

Rating:
100% of 100
SKU: CE04864 Brand: Waveshare
Perfect for simple home-automation projects, this module allows your Raspberry Pi to control three independent relays, allowing you to easily control high-current loads while keeping your Pi safely isolated. All the necessary driver circuitry is on-board, and control is as simple as driving a GPIO pin high or low
$27.05 AUD, inc GST
$24.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 10-25 $23.85 (exc GST)
  • 25+ $23.36 (exc GST)
- +

18 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

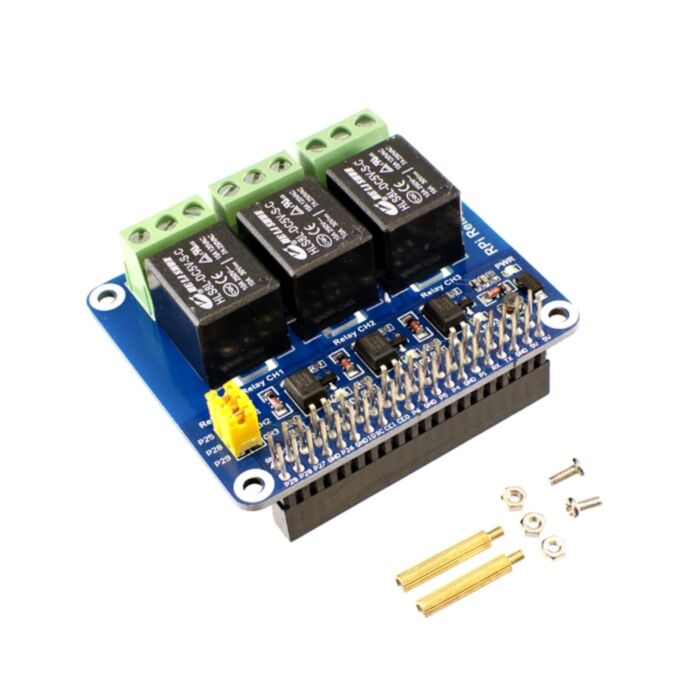

Perfect for simple home-automation projects, this module allows your Raspberry Pi to control three independent relays, allowing you to easily control high-current loads while keeping your Pi safely isolated. All the necessary driver circuitry is on-board, and control is as simple as driving a GPIO pin high or low. Relays can be easily disconnected from their corresponding GPIO by removing an on-board jumper, allowing you to free-up unused channels for other purposes. Standoffs are included to help secure the module to your Pi.

To get you started, we have a simple python script that you can download (must have internet connection):

curl -L http://coreelec.io/34 >> relay-test.py

Then run it with

python relay-test.py

You should see the relays sequence on then off.

Note: This is compatible with all Pi 3 and 4 model B/B+ boards.

Tech Specs:

  • Relay contacts: SPDT
  • Relay contact rating: 10A (30VDC / 250VAC)
  • CH1: GPIO 26
  • CH2: GPIO 20
  • CH3: GPIO 21

Dimensions:

Board Dimensions

  • 3mm mounting holes
  • Approximately 16mm tall with relays installed
  • Female Pi headers on the bottom of the board are approximately 13.5mm tall

Further reading:
