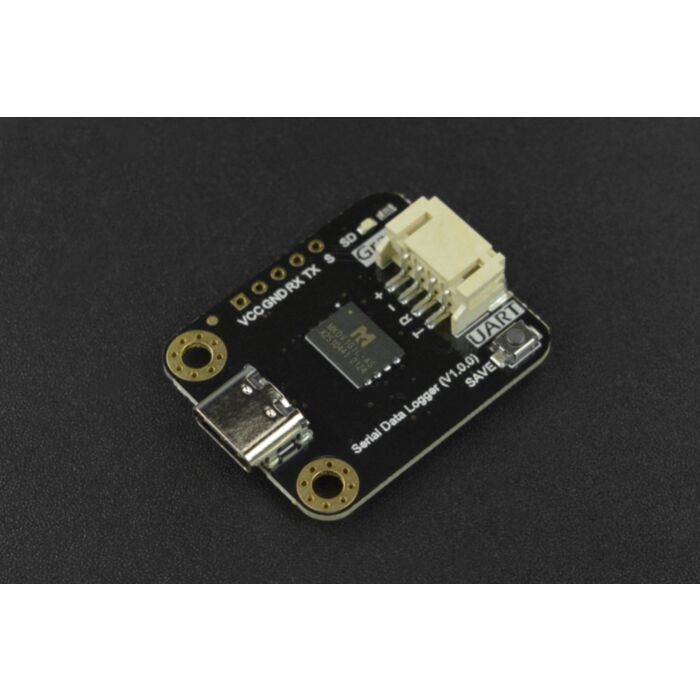

Gravity: Serial Data Logger for Arduino

Rating:

100% of 100

SKU: TEL0147 Brand: DFRobot

This Gravity: Serial Data Logger with 128MB Flash memory and USB function, can store data more conveniently and is suitable for short-time environmental...

$20.65 AUD, inc GST

$18.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Mar

Quantity Discounts:

10+ $18.02 (exc GST)
25+ $17.45 (exc GST)

Recommended Essentials:

PiicoDev Prototyping Cable (Male) 200mm

$0.98

Compared to the old MicroSD Card Module, this Gravity: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes.

The Serial Data Logger provides onboard 128MB Flash memory, no more TF card required. It comes with a USB function, which means you can directly connect it to a PC computer to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE key makes it easier to store data into separate files.

Connect Diagram

Connection diagram for the Serial Data logger, TX from the Arduino to the RX of the logger module

Features

With USB function, no card reader required
Onboard 128MB Flash memory, no TF card required
Support multiple baud rates, good compatibility
LED indicator for viewing data writing status visually

Applications

Offline data collection
Capture product log grab
Robots and drones debug

Specification

Supply Voltage: 3.3V~5V
Operating Current: 32mA
USB Protocol: USB2.0
Operating Temperature Range: -30°C ~ 85°C
Operating Humidity Range: 5%RH~85%RH
Dimension: 32*27mm/1.26*1.06”

Documents

Product wiki

Parts List

Gravity: Serial Data Logger x1
2.54-5P Black Single-row Connector x2
Gravity-4P I2C/UART Sensor Cable x1
