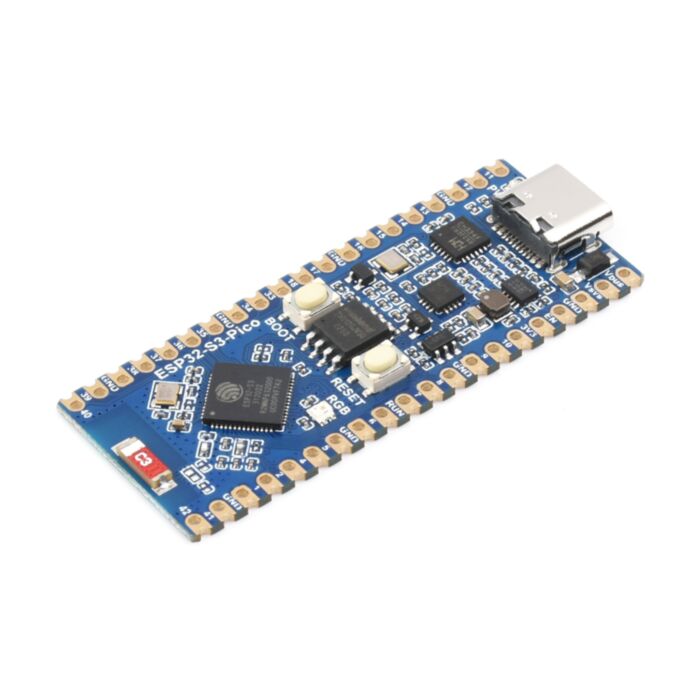

ESP32-S3-Pico Microcontroller

SKU: WS-23803 Brand: Waveshare
ESP32-S3 Microcontroller, 2.4 GHz Wi-Fi Development Board, dual-core processor with frequency up to 240 MHz...
$15.15 AUD, inc GST
$13.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 4th of Jun

Quantity Discounts:

  • 10-25 $13.36 (exc GST)
  • 25+ $13.08 (exc GST)
- +

11 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

ESP32-S3 Microcontroller, 2.4 GHz Wi-Fi Development Board, dual-core processor with frequency up to 240 MHz

Supports development environments such as ESP-IDF, Arduino, MicroPython,etc

Specifications

The ESP32-S3-Pico is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, with built-in 512 KB SRAM (TCM) and 2MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Features

  • Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
  • Type-C connector, easier to use
  • Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
  • Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
  • 27 × multi-function GPIO pins
  • Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly
  • Castellated module allows soldering directly to carrier boards
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
  • Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development

Pinout

Note: SPI, I2C, UART and other interfaces can be mapped to most GPIOs through the GPIO Matrix and IO MUX, see the ESP32-S3 datasheet for details.

What's On Board



  1. ESP32-S3R2 Xtensa 32-bit LX7 dual-core processor,with onboard 2MB PSRAM
  2. 2.4G monopole ceramic antenna
  3. W25Q128JVSIQ 16MB Flash memory
  4. BOOT button Press it when resetting to enter download mode
  5. RESET button
  6. CH334F USB HUB controller
  7. CH343P USB to UART chip
  8. MP28164 High efficiency DC-DC buck-boost chip
  9. USB Type-C port
  10. Power indicator

Supports other Extension Modules

Eval-Board 3.5" LCD 1.3" OLED 8-segment LED e-paper NB-IoT Module GPIO Expander Sensor Module RTC Module UPS Module

* for more compatible modules, please check this link

Dimensions





Resources

Wiki for S3-Pico

This product is listed in:

Development Boards>ESP32
