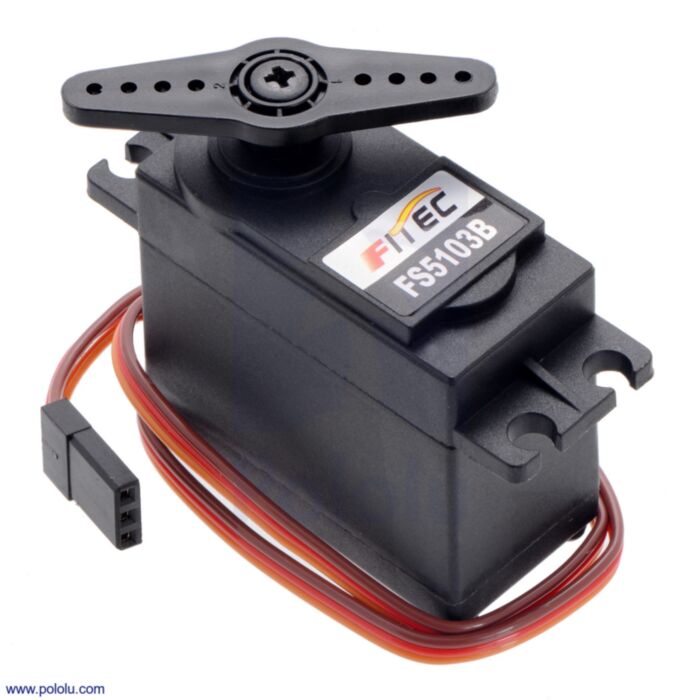

FEETECH Standard Servo FS5103B

SKU: POLOLU-3424 Brand: Pololu
The FS5103B is a general-purpose, low-cost standard analog servo from FEETECH. Two ball bearings help reduce friction and improve performance. Servo horns...
$22.84 AUD, inc GST
$20.76 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 14th of May

Quantity Discounts:

  • 10+ $20.45 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The FS5103B is a standard-size analog servo manufactured by FEETECH, designed for general-purpose use. Its output shaft is equipped with two ball bearings to reduce friction. The servo is compatible with standard RC servo pulses, delivering an operating angle of around 180° within a servo pulse range of 600 µs to 2400 µs. Additionally, it comes with a 12" (30 cm) cable that features a standard JR-style connector that is Futaba-compatible. For more detailed information about the servo, please refer to its datasheet (133k pdf).

The servo cable is terminated with a Futaba-compatible JR-style connector.

FEETECH Standard Servo FS5103B with included hardware (actual hardware might vary).

This servo is also compatible with Pololu's Mounting Bracket for Standard-Size Servos:

If you're planning to use this servo in more advanced robotics applications, it's worth mentioning that Pololu offers a modified version that includes a fourth (green) wire. This modification allows you to access the feedback potentiometer and monitor the servo's actual position from your controller, providing greater control and precision.

FEETECH Standard Servo FS5103B-FB with Position Feedback.

Note that, as with most hobby servos, stalling or back-driving this servo can damage it.

Comparison to the Power HD 3001HB servo

If you're looking for a budget-friendly option, the FS5103B servo is a great alternative to the Power HD 3001HB. With similar dimensions and performance, these two servos are generally interchangeable for most applications. To get a better idea of the similarities, check out the picture below, which shows the FS5103B and the 3001HB side by side:

People often buy this product together with:

Power HD Standard Servo 3001HB Power HD Standard Servo 3001HB
Micro Maestro 6-Channel USB Servo Controller (Assembled) Micro Maestro 6-Channel USB Servo Controller (Assembled)
Mini Maestro 12-Channel USB Servo Controller (Assembled) Mini Maestro 12-Channel USB Servo Controller (Assembled)

Dimensions

Size: 40.8 × 20.1 × 38 mm
Weight: 40 g

General specifications

Digital?: N
Speed @ 6V: 0.16 sec/60°
Stall torque @ 6V: 3.8 kg·cm
Speed @ 4.8V: 0.18 sec/60°
Stall torque @ 4.8V: 3 kg·cm
Hardware included?: Y
Lead length: 12 in

File downloads

  • Datasheet for the FEETECH Standard Servo FS5103B (133k pdf)

    Note: while this datasheet lists the 6 V stall torque as 3.2 kg*cm, Feetech has since revised this to 3.8 kg*cm based on more recent measurements (this is also more in line with their listed 4.8 V stall torque of 3.0 kg*cm).
