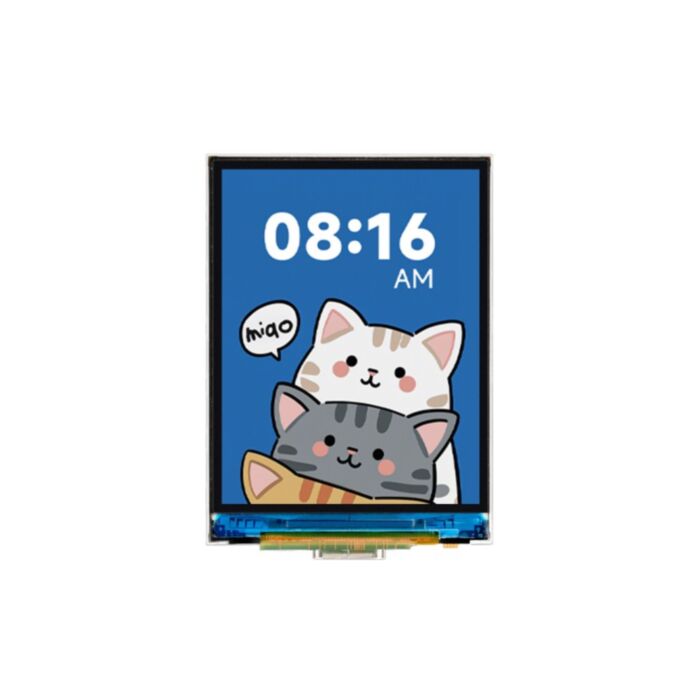

ESP32-S3 2inch Display Development Board with camera
Available with a lead time
Expect dispatch between Apr 11 and Apr 14
ESP32-S3 2inch Display Development Board, 240×320 Pixels, IPS Panel, 262K color, 32-bit LX7 Dual-core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display
Onboard camera interface and TF card slot
Embedded with ST7789T3 Display Driver, SPI communication
Features
ESP32-S3-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), camera interface, and so on, which makes it easy for you to develop and integrate it into the products quickly.
Key features include:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, improving device compatibility, easier to use
- Onboard 2inch LCD display for clear color picture display, 240 × 320 resolution, 262K color
- Built-in ST7789T3 display driver, using SPI communication, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard TF card slot for external TF card storage of pictures or files
- Adapting 22 × GPIO pins for flexible configuration of pin function
- Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition
LCD Parameters
| Display Panel | IPS LCD | Display Size | 2inch |
|---|---|---|---|
| Resolution | 240 × 320 pixels | Display Colors | 262K |
| Display Interface | 4-wire SPI | Driver IC | ST7789T3 |
