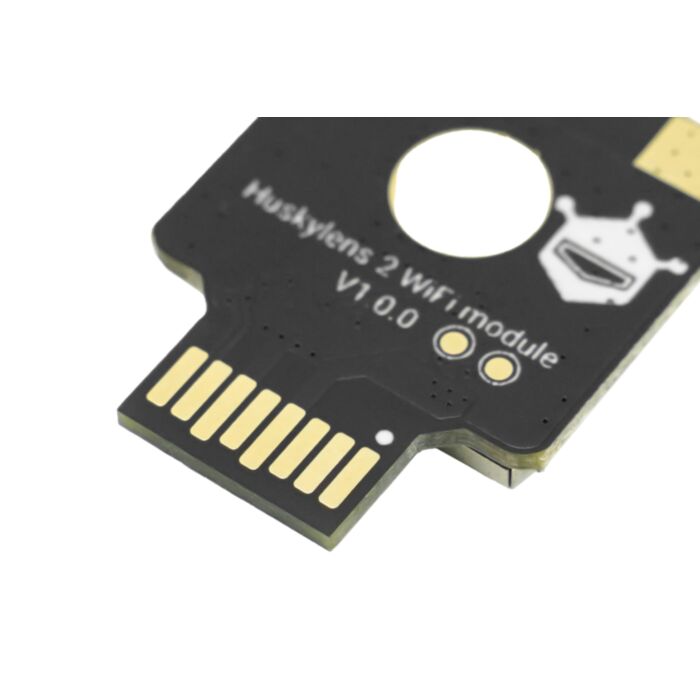

HUSKYLENS 2 WiFi Module (Wireless AI Vision & AIoT)

SKU: TEL0191 Brand: DFRobot

Instantly upgrade HUSKYLENS 2 AI vision sensor with this Wi-Fi 6 module. Stream video wirelessly, build powerful AIoT applications, and connect to LLMs....

$14.80 AUD, inc GST

$13.45 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 27 and Dec 01

The HUSKYLENS 2 WiFi Module is a dedicated wireless expansion accessory designed exclusively for the HUSKYLENS 2 AI vision sensor. It operates as a plug-and-play USB device, seamlessly equipping the sensor with high-speed, stable Wi-Fi 6 connectivity. This upgrade is pivotal, transforming the HUSKYLENS 2 from a wired peripheral into an intelligent, wireless node. Key capabilities unlocked by this module include real-time wireless image and data transmission, direct integration with Large Language Models (LLMs) as a perceptual front-end, and simplified remote device management. Leveraging the 2.4GHz band, this module is engineered for advanced AI educational platforms, complex robotics, and sophisticated AIoT (Artificial Intelligence of Things) system development.

High-Performance Wireless Connectivity

The module integrates the Wi-Fi 6 standard, offering significantly enhanced network efficiency, lower latency, and robust data throughput compared to previous standards. This ensures stable, real-time communication even in complex network environments, removing the physical tether of a data cable and enabling flexible deployment of the HUSKYLENS 2 sensor.

Real-time Video Streaming of HUSKYLENS 2

Figure: Real-time Video Streaming of HUSKYLENS 2

Real-Time Wireless Image Transmission

This feature upgrades the standard wired USB video feed to a fully wireless stream. It allows for the real-time monitoring of the HUSKYLENS 2's visual feed, capture of images, and collection of recognition data from a remote terminal. This is ideal for remote project debugging, classroom-scale AI education experiments, and maker project demonstrations where cabled connections are impractical.

Simplified AI Model Management

Wireless connectivity facilitates streamlined device management. New AI models from the Model Plaza can be downloaded and deployed to the HUSKYLENS 2 simply by scanning a QR code, eliminating the need for a PC connection for model updates. Furthermore, the module supports Over-the-Air (OTA) firmware updates, ensuring the device remains current with the latest features and security patches.

Direct Large Language Model (LLM) Integration (In Development)

By functioning as an MCP (Master Control Program) server, this WiFi module enables the HUSKYLENS 2 to act as a "perceptual front-end" for large models. It can transmit visual recognition results (e.g., object detection, classification) directly to an LLM in real-time, greatly enhancing the model's ability to perceive, understand, and interact with the physical world.

Advanced AIoT Communication (In Development)

Future capabilities include support for the MQTT protocol, allowing the HUSKYLENS 2 to function as an MQTT server. This enables seamless wireless data exchange with common IoT controllers like ESP32 or UNIHIKER, facilitating robust machine-to-machine (M2M) communication for integrated AIoT systems.

Note: Functions marked "In Development" will be released sequentially with HUSKYLENS 2 firmware updates. This WiFi module does not require independent upgrades; you only need to update the HUSKYLENS 2 firmware to get new features.

Specification

WiFi Standard: Wi-Fi 6

Wireless Frequency: 2.4GHz

Max Rate: 286.8Mbps

Bandwidth: 20/40 MHz

Encryption Protocols: WEP / WPA / WPA2 / WPA3

Interface Type: USB
