Search results for: 'phototransistor'

This is a board designed for opto-isolation. This board is helpful for connecting digital systems (like a 5V microcontroller) to a high-voltage or noisy system. This board electrically isolates a controller from the high-power system by use of an opto-isolator IC. This IC has two LEDs and two photodiodes built-in. This allows the low-voltage side to control a high voltage side.

Infrared (IR) break-beam sensors are a simple way to detect motion. They work by having an emitter side that sends out a beam of human-invisible IR light, then a...

The Monk Makes Sensor Board for micro:bit allows you to sense sound level, temperature and light level.

Here comes DFRobot's new Analog Ambient Light Sensor. Brand new design and much more convenient to use.

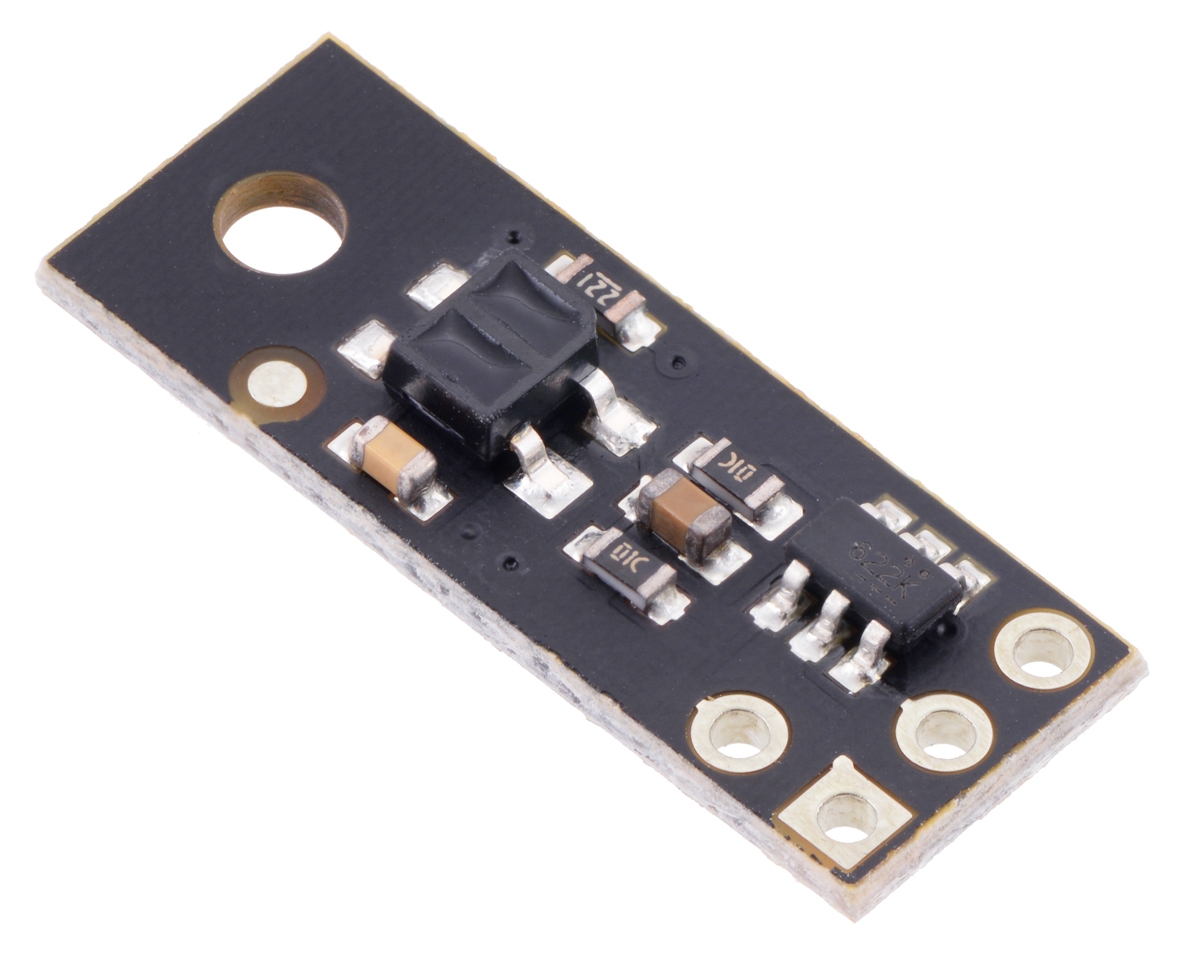

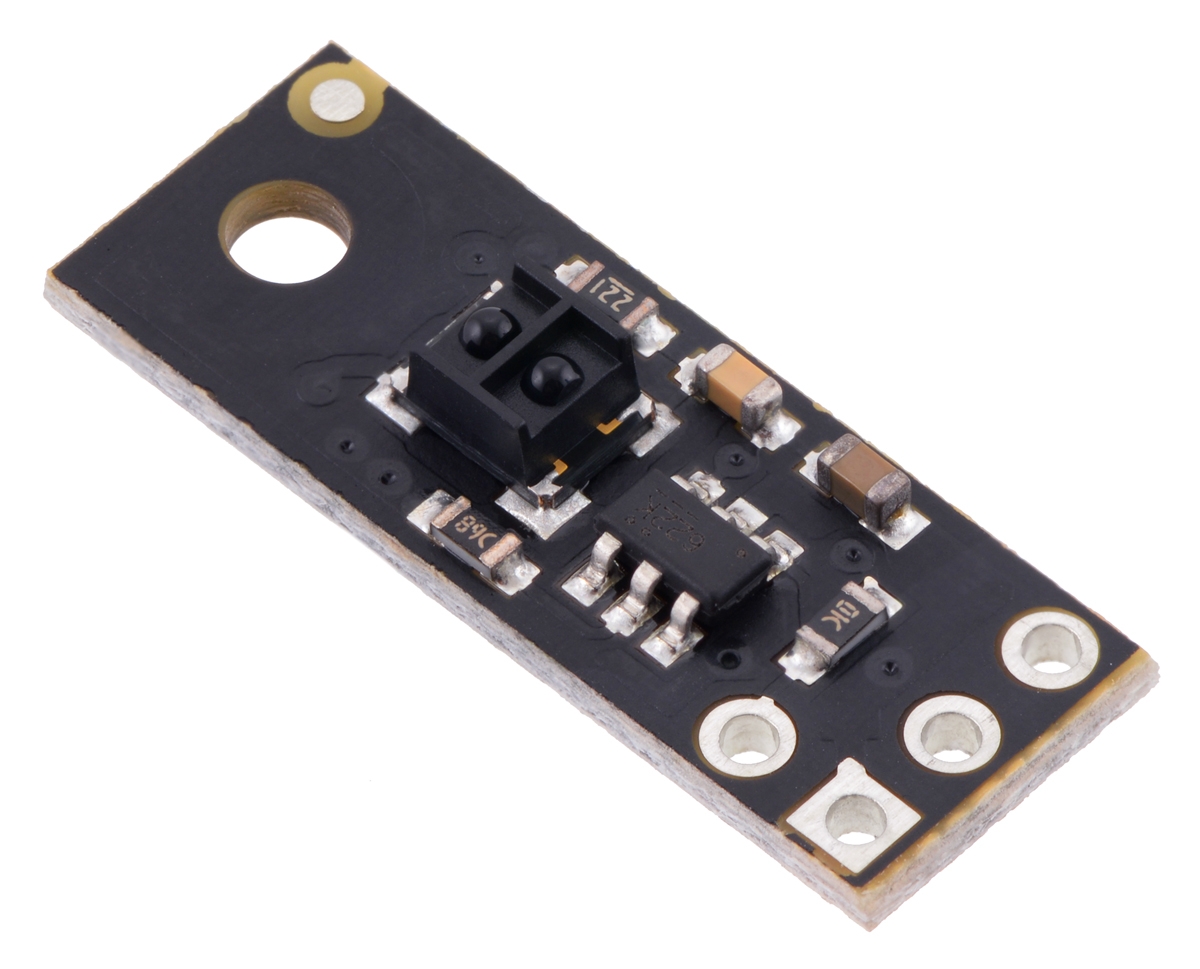

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and...

This sensor uses an infrared emitted diode combined with an infrared phototransistor to detect the reflected infrared signal. Ideal for sensing black-to-white transitions or can be used to detect nearby objects (.5-1cm).

An optical reflective sensor is a composite electronic device with two elements - an IR LED and an IR photo-transistor. The IR LED blasts light, and when...

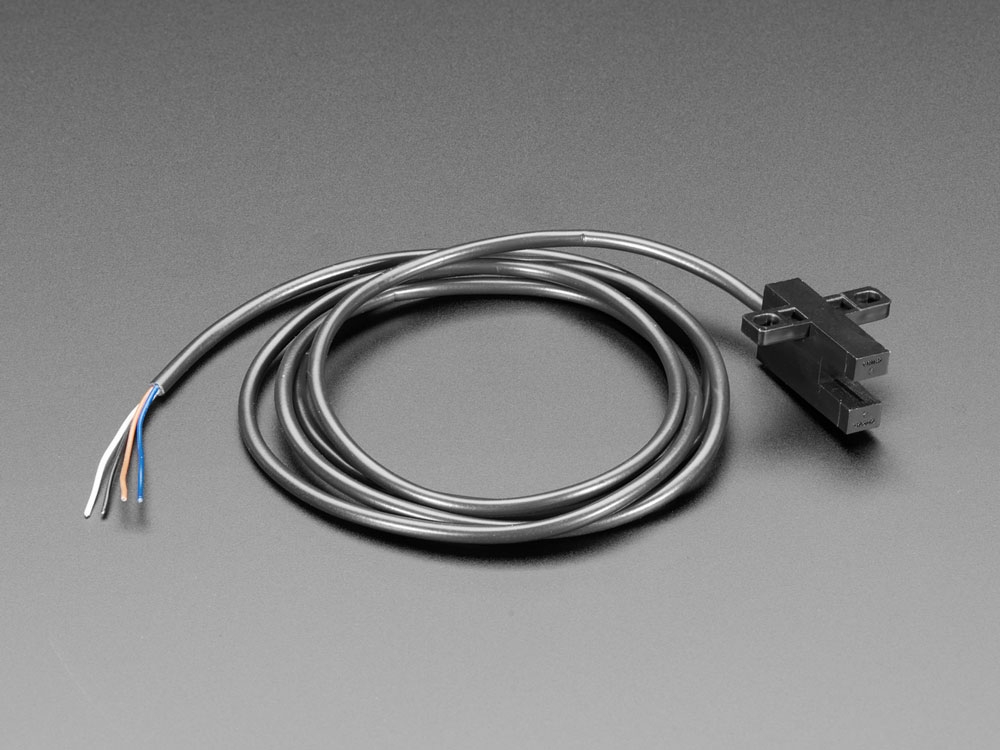

This sensor is composed of an infrared emitter on one upright and a shielded infrared detector on the other. By emitting a beam of infrared light from one upright to the other, the sensor can detect when an object passes between the uprights, breaking the beam. Used for many applications including optical limit switches, pellet dispensing, general object detection, etc. Gap width = 10mm

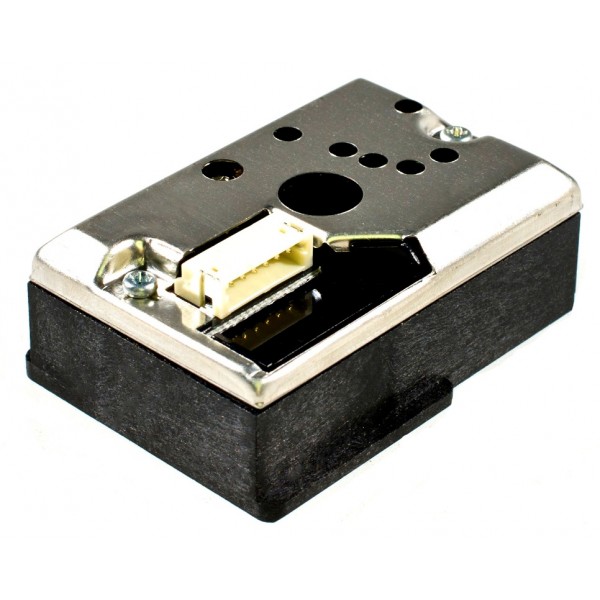

The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

This Reflective IR Sensor is a simple plastic casing with two elements - an IR LED and an IR phototransistor. You can control the IR LED and turn it on to bounce...

The LilyPad Light Sensor is a sewable breakout board with an ALS-PT19 light sensor built in and ready to use right away. Each sensor outputs voltage between 0V and...

This reflectance sensor module is designed specifically for use with the Balboa 32U4 balancing robot. It features five IR LED/phototransistor pairs that are great for identifying changes in reflectance on the ground directly underneath the Balboa (like detecting or following a black line on a white background). The sensor array offers dimmable brightness control, and each sensor provides an independent output that can be measured with a digital I/O.

Electronics and water don't usually mix - which is why liquid level sensing projects can be a little challenging. You can DIY a sensor but keeping it clean and un-oxidized...

Circuit Playground Bluefruit is Adafruit's third board in the Circuit Playground series, another step towards a perfect introduction to electronics and programming. Adafruit have...

This Kitronik USB Dark Activated Colour Changing Night Light Kit offers an ideal platform for teaching electronics and/or enclosure design. The...

A simple breakout PCB for the GP1A57HR photo interrupter. This PCB has three connections for PWR, GND, and Signal.

This low-cost and simple-to-use electronics kit will teach you electronics and coding with Simon Monk's Programming the Pico: Learn Coding &...

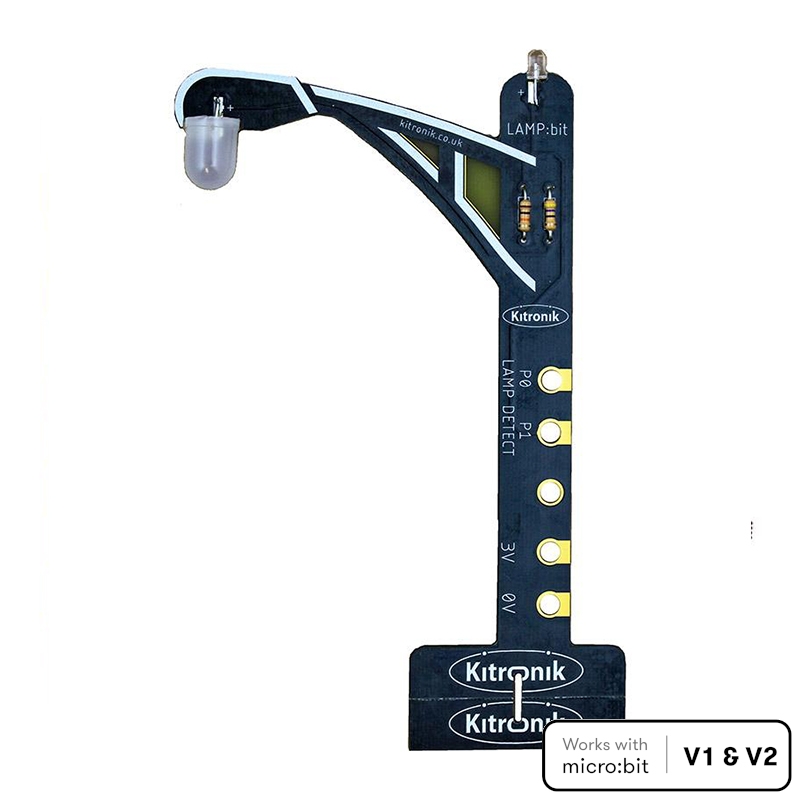

The LAMP:bit is a bolt-on/clip-on board for the micro:bit that replicates a street light which features a built in phototransistor for autonomous switching.

Add quadrature encoders to your micro metal gearmotors (extended back shaft version required) with this kit consisting of two sensor boards, two 3-tooth encoder wheels, and two 5-tooth encoder wheels. The installed system does not exceed the 12 mm × 10 mm cross section of the motors and extends only 5 mm beyond the plastic motor end cap. The 3-tooth wheel provides 12 counts per revolution; using the 5-tooth wheel yields 20 counts per revolution. This version is intended for use at 5 V.
