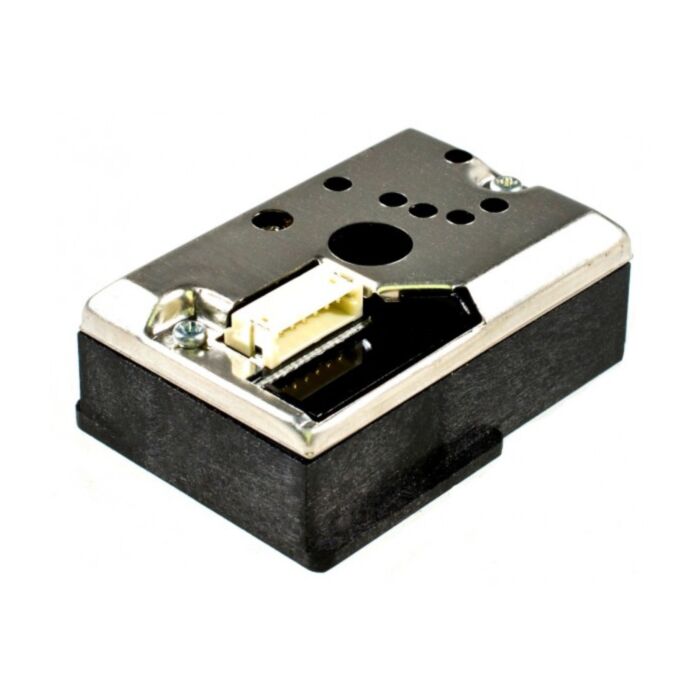

Sharp GP2Y1010AU0F Compact optical Dust Sensor

SKU: SEN0144

$20.33 AUD, inc GST
$18.48 AUD, exc GST

More Views

Sharp GP2Y1010AU0F Compact optical Dust Sensor
20.33 AUD

SKU: SEN0144

$20.33 AUD, inc GST
$18.48 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 987 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Jul with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.

An infrared emitting diode and a phototransistor are diagonally arranged into this device, to allow it to detect the reflected light of dust in air.

The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

For your convenience, DFRobot ship this sensor with a 6-pin, 1.5mm pitch mating connector and cable.

To link this sensor with Arduino, a 150ohm resistor and a 220uF capacitor are required.


Specification
  • Supply voltage: 5-7V
  • Operating temperature: -10-65 Celsius degree
  • Consumption current:20mA max

Shipping List
  • Sharp GP2Y1010AU0F Dust Sensor   *1
  • Cable   *1

Documents
Documentation and Resources:
