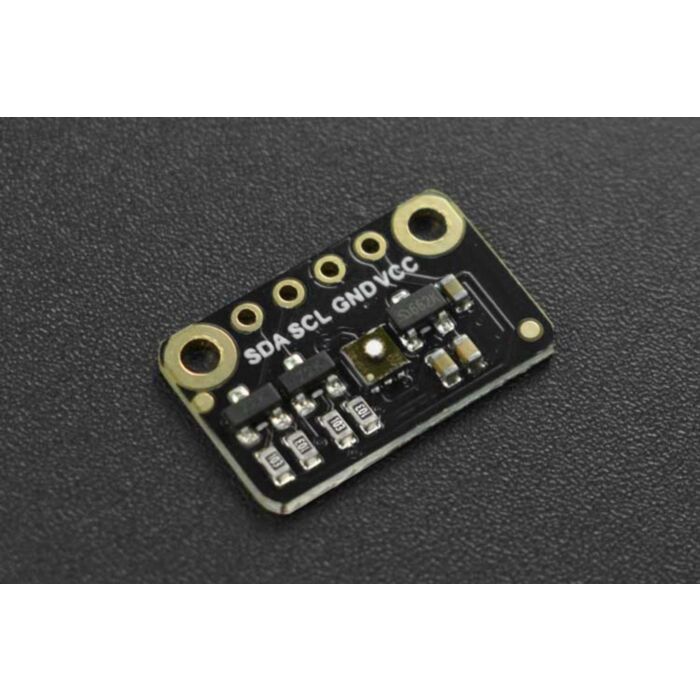

SGP40 Air Quality Sensor - Breakout

SKU: SEN0392 Brand: DFRobot

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion. Based on the Sensirion’s CMOSens® technology, the...

$29.80 AUD, inc GST

$27.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $26.01 (exc GST)
25+ $25.19 (exc GST)

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion. Based on the Sensirion’s CMOSens® technology, the SGP40 offers a complete sensor system on a single chip, a temperature-controlled micro-hotplate and a humidity-compensated indoor air quality signal. In combination with Sensirion’s powerful VOC algorithm, the sensor signal can be directly used to evaluate indoor air quality. It features low power(2.6mA), and fast response(2s). The data from the sensor can be directly used to evaluate air quality without calibration.

With compact and small body, this Breakout SGP40 Air Quality sensor is very suitable for indoor projects that will be used for a long time, such as refitting air purifiers, kitchen hoods, etc. Besides, we provide you with C and Python libraries for using with different main-controllers.

Note: VOC index is obtained by converting the detected ethanol equivalent in air.

Features

Ultra-low Power Consumption(2.6mA)
Built-in Temperature and Humidity Compensation, no need to calibrate
VOC Index for direct Air Quality Indication

Applications

Air Purifiers
Kitchen Hoods
Demand-controlled Ventilation
Thermostats
Indoor Air Quality Monitoring

Specification

Power Supply: 3.3V~5V
Operating Current: 2.6mA
Preheat Time: 10S
Response Time: 2S
Communication: I2C
I2C Address: 0x59
Operating Temperature Range: -10°C ~ 50°C
Storage Temperature Range: 5°C ~ 30°C
Operating Humidity Range: 0%RH~90%RH
VOC Index: 0-500
Measuring Range: 0-1000ppm(Ethanol Equivalent)
Dimension: 18*11.5mm/ 0.71*0.45”

Documents

Product wiki

Parts List

SGP40 Air Quality Sensor - Breakout x1
2.54-4P Black Single-Row Connector x1
