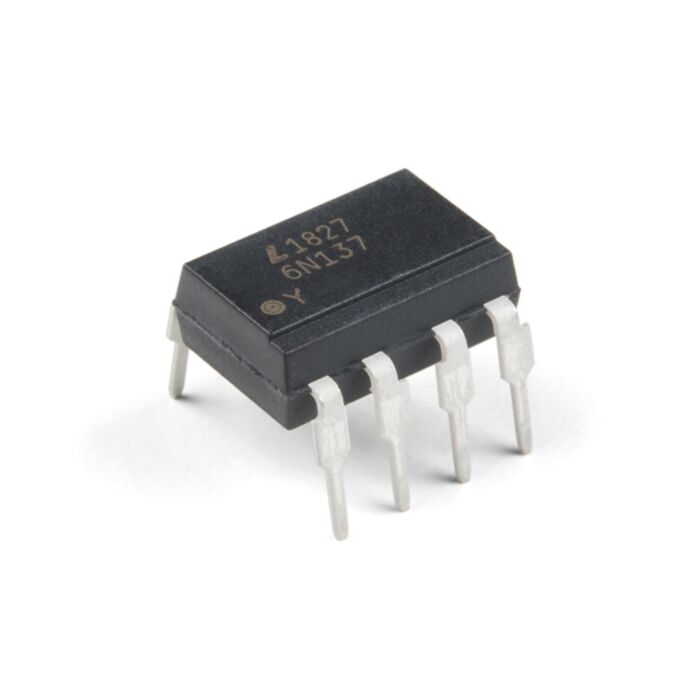

High Speed Optoisolator - 6N137

Rating:

100% of 100

SKU: COM-15105 Brand: Sparkfun

This diode-transistor photocouplers consist of an LED, optically coupled to a high speed photodetector to transmit electrical signals between circuits while still...

$1.90 AUD, inc GST

$1.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $1.67 (exc GST)
25+ $1.64 (exc GST)

This diode-transistor photocouplers consist of an LED, optically coupled to a high speed photodetector to transmit electrical signals between circuits while still isolating your system from higher voltages. The 6N137 optoisolator is presented in an 8-pin DIP package.

The output features is an open collector and coupler parameters are guaranteed over the temperature range from -40°C ~ 5°C. The internal shield provides a guaranteed Common Mode Transient Immunity (typical) 10KV/µs.

Features

High Speed: 10MBd
Common Mode Rejection: 10KV/µs

Documents

Datasheet
