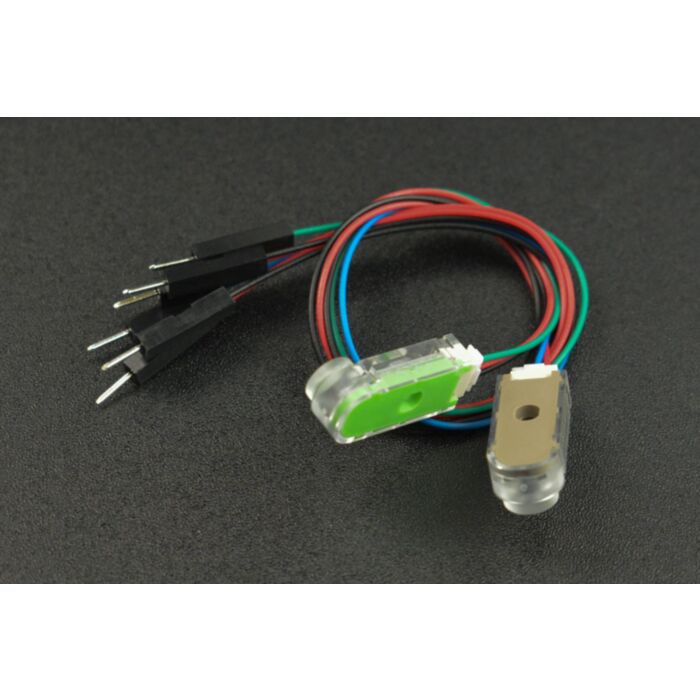

5V IR Photoelectric Switch (4m)

SKU: SEN0523 Brand: DFRobot

This IR break beam sensor works up to 4m with a fast and stable response of 0.5ms. Power the sensor by a voltage of DC 5V. It can be used with Arduino in...

$21.20 AUD, inc GST

$19.27 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 20

Quantity Discounts:

10-25 $18.69 (exc GST)
25+ $18.31 (exc GST)

Infrared (IR) break-beam sensors are a simple way to detect motion. They work by having an emitter side that sends out a beam of human-invisible IR light, then a receiver across the way which is sensitive to that same light. When something passes between the two, and it’s not transparent to IR, then the“beam is broken“and the receiver will output a signal.

This IR break beam sensor works up to 4m with a fast and stable response of 0.5 ms. With a small size, the module can be conveniently installed in a narrow space. Besides, it can operate within a temperature of -10°C to 60°C.

Power the sensor by a voltage of DC 5V. It can be used with Arduino in smart robot competitions for simple motion detection, speed detection, timing, etc.

5V IR Photoelectric Switch (4m)

Features

IR Photoelectric switch with 4m detection range

Small in size, fast response

Applications

Simple motion detection

Speed detection

Timing

Specification

Operating Voltage: DC 5V

Output Current: 30mA

Output Power: 100mW

Sensing Range: 4m

Sensing Mode: thru-beam(Non-transparent Objects)

Wavelength: 830nm

Emitting Angle: straight line (infrared light)

Receiving Angle: ±5°

Response Time: 0.5ms

Operating Temperature: -10~+60°C

Storage Temperature: -20~+80°C

Transmitter: red wire-5V, black wire-GND, green wire-floating

Receiving: red wire-5V, black wire-GND, blue wire-floating

Green PCB for the transmitter, black PCB for the receiver

Parts List

5V IR Photoelectric Switch (4m) x1
