QTR-3A Reflectance Sensor Array

SKU: POLOLU-2456 Brand: Pololu

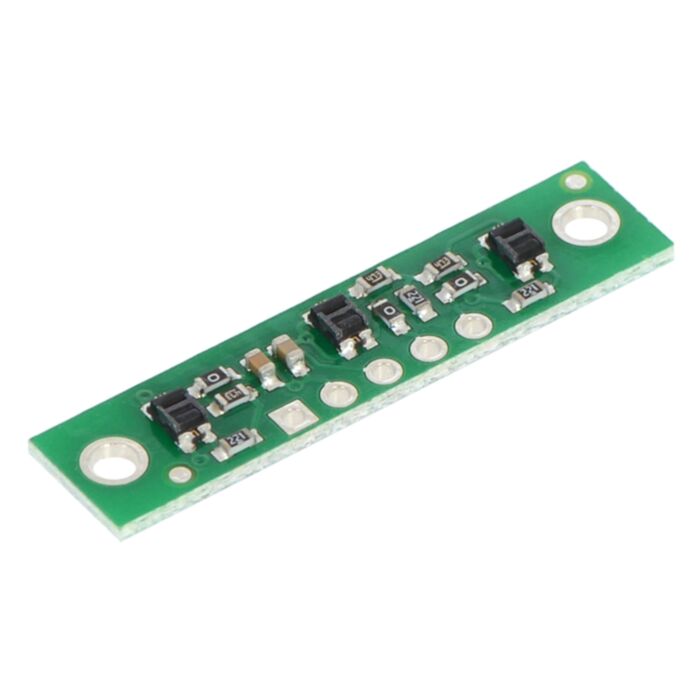

This compact module packs three IR LED/phototransistor pairs onto a 1.25″ × 0.3″ board. The sensors are mounted on a 0.375″ pitch, making this array a great minimal sensing solution for a line-following robot. Each sensor provides a separate analog voltage output.
$11.40 AUD, inc GST
$10.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $9.95 (exc GST)
  • 25+ $9.64 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The QTR-3A reflectance sensor array requires analog inputs to take readings. The similar QTR-3RC reflectance sensor array is available with digital I/O-compatible outputs.

Functional Description

The QTR-3A reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for three IR emitter and receiver (phototransistor) pairs. With sensors spaced at intervals of 0.375" (9.525 mm) along of the board’s longer axis, this array works well as a minimal detector for line-following robots, as line-following courses are commonly made using 3/4" (19 mm) black electrical tape. The middle sensor is slightly offset along the short axis of the board.

Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VCC (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.

The LED current-limiting resistors are set to deliver approximately 17 mA to the LEDs when VCC is 5 V, making the total board consumption just over 50 mA. The schematic diagram of the module is shown below:

This schematic is also available as a downloadable pdf (115k pdf).

For an alternative array with eight sensors and the ability to turn off the IR LEDs to limit power consumption, consider Pololu's QTR-8A reflectance sensor array. For individual reflectance sensors, consider Pololu's QTR-1A and QTR-L-1A.

QTR sensor size comparison. Top row: QTRX-HD-07, QTR-HD-07; middle row: QTR-3, QTR-1, QTR-L-1; bottom row: QTR-8.

Specifications

  • Dimensions: 1.25" × 0.3" × 0.1" (32 × 8 × 3 mm) (without header pins installed)
  • Operating voltage: 5.0 V
  • Supply current: 50 mA
  • Output format: 3 analog voltages
  • Output voltage range: 0 V to supplied voltage
  • Optimal sensing distance: 0.125" (3 mm)
  • Maximum recommended sensing distance: 0.25" (6 mm)
  • Weight without header pins: 0.02 oz (0.6 g)

Interfacing with the QTR-3A Outputs

There are several ways you can interface with the QTR-3A outputs:

  • Use a microcontroller’s analog-to-digital converter (ADC) to measure the voltages.
  • Use a comparator with an adjustable threshold to convert each analog voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.
  • Connect each output directly to a digital I/O line of a microcontroller and rely upon its internal comparator.

This last method will work if you are able to get high reflectance from your white surface as depicted in the left image, but will probably fail if you have a lower-reflectance signal profile like the one on the right. (Please note that these images show the output of a QTR-1A, which uses a sensor with slightly different characteristics than the ones on the QTR-3A.)

QTR-1A output 1/8" away from a spinning white disk with a black line on it.

QTR-1A output 3/8" away from a spinning white disk with a black line on it.

Pololu's Pololu AVR library provides functions that make it easy to use these sensors with Pololu's Orangutan robot controllers; please see the QTR Reflectance Sensors section of Pololu's library command reference for more information. Pololu also have a Arduino library for these sensors.

Included Components

This module has two mounting holes intended for #2 screws (not included); if the mounting holes are not needed, the ends of the PCB can be ground off to make the unit even smaller (less than 1" wide). The reflectance sensor array ships with a 1×5 straight male header strip and a1×5 right-angle male header strip as shown below. You can also solder wires, such as ribbon cable, directly to the pads for the smallest installation.

QTR-3A or QTR-3RC reflectance sensor array with included header pins.

QTR-3A and QTR-3RC reflectance sensor arrays soldered in different orientations.

People often buy this product together with:

Tamiya 70168 Double Gearbox KitTamiya 70168 Double Gearbox Kit
QTR-8A Reflectance Sensor ArrayQTR-8A Reflectance Sensor Array
QTR-8RC Reflectance Sensor ArrayQTR-8RC Reflectance Sensor Array

Dimensions

Size: 1.25" × 0.3"1
Weight: 0.6 g2

General specifications

Supply current: 50 mA

Identifying markings

PCB dev codes: irs07a
Other PCB markings: 0J7448

Notes:

1
Mounting holes can be cut/ground off to decrease with to under 1".
2
Without included optional headers.
