CAN BUS OBD-II RF Dev Kit - 2.4Ghz wireless - Arduino Support

SKU: SS110061304 Brand: Seeed Studio

OBD-II RF Dev Kit helps you communicate wirelessly with your vehicle's OBD-II interface using RF (Radio Frequency) through hundreds of meters, which means...

$51.85 AUD, inc GST

$47.14 AUD, exc GST

Available with a lead time
Expect dispatch between May 27 and May 30

Quantity Discounts:

6-12 $45.25 (exc GST)
12+ $43.84 (exc GST)

What is OBD-II?

OBD-II (short terms for On-Board Diagnostics, Second Generation) is a set of standards for implementing a computer-based system to control emissions from vehicles. Also, it can be explained as a vehicle's built-in self-diagnostic system. When your vehicle has an internal issue, normally it would pop up a malfunction indicator light on your dashboard, telling you to visit the broken mechanic and get the problem fixed. In the past, this light would just light up to indicate the vehicle is broken, but it was not possible to identify where the issue was. Nowadays, the OBD-II built inside vehicles, allows you to identify the exact problem of the vehicle by connecting an OBD-II reader to the OBD-II 16-pin connector built inside the vehicle. Through this, it has been possible to read OBD-II codes, also known as Diagnostic Trouble Codes (DTCs) which help understand the issues, and there is no need to completely disassemble the vehicle.

What is OBD-II RF Dev Kit and how does it work?

Usually, there is an OBD-II interface on the vehicle for the user to read some data through the CAN-Bus interface, such as vehicle speed, engine speed, and oil temperature, etc. And 'RF' stands for 'Radio Frequency', it can help to transmit data through hundreds of meters without CAN-Bus or any cable. With the RF device kit, the data about vehicles can be transmitted wireless to other devices like microcontrollers.

OBD-II RF Dev Kit includes two parts: the transmitter and the receiver. The transmitter is inserted into the OBD-II interface of the vehicle, integrating with the CAN-Bus interface and RF communication. That means it can transmit the data read by CAN-Bus to the remote end through radiofrequency. The receiver is a Serial RF Module, which can send the data from the receiving end to the microcontroller through the serial port.

Additionally, if you want to build some interesting projects about using vehicle data and remotely processing with it, we highly recommend you use this OBD-II RF Dev Kit for your projects.

Features

Communicating with CAN 2.0
Transmitting data wirelessly through 2.4 GHz radiofrequency
The standard OBD-II vehicle connector
Easily using Arduino library to develop
120 meters communication distance in the wild

Application

Car "hacking"
Remotely checking the problem of vehicles

Specification

MCU: Atmega 168PA
Barurate: 9600
Communication distance: 120m
Power input of the transmitter: 12V
Power input of the receiver: 3.6V

Part List

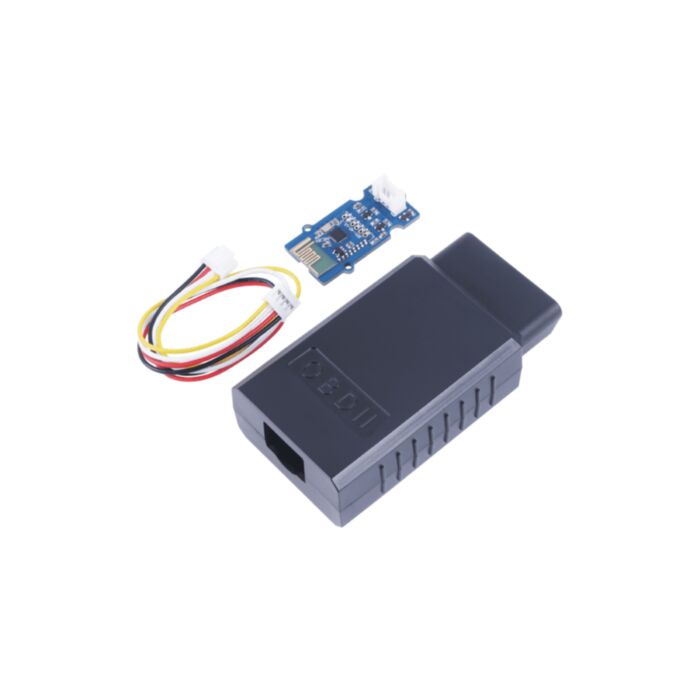

The transmitter with a case
The receiver module
Grove Cable

Technical Details

Dimensions: 180mm x 110mm x 20mm
Weight: G.W. 53g
Battery: Excluded
