I2C CAN-BUS Module based on MCP2551 and MCP2515

SKU: SS113020111 Brand: Seeed Studio

We launched the Serial CAN Bus Module years ago, which is very practical and easy to use. Now we have slightly modified the Serial CAN Bus...

$39.30 AUD, inc GST

$35.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

10-25 $34.30 (exc GST)
25+ $33.23 (exc GST)

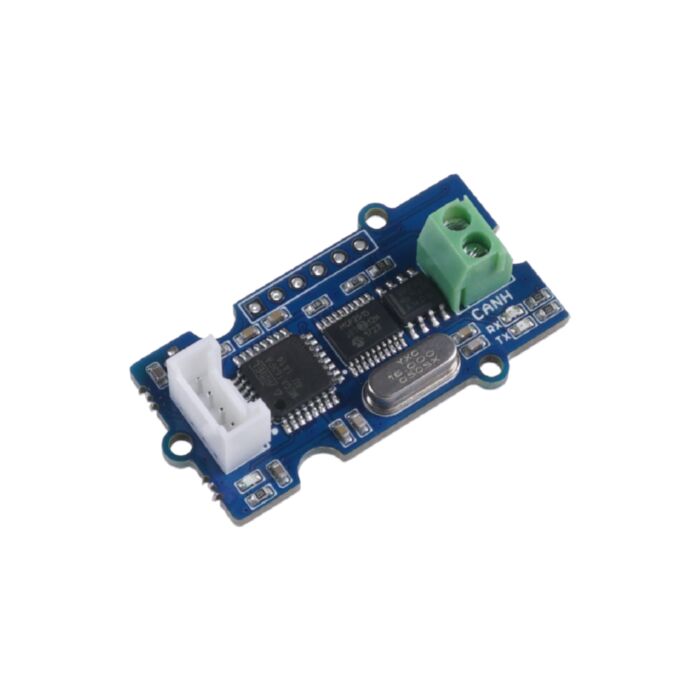

The I2C CAN Bus Module uses I2C for communication which is widely available on most modern microcontrollers and is provided with an Arduino library. The default I2C Address is 0x25 and there is a max I2C Speed of 400k.

The board is small and has flexible mounting options, which makes it easy to integrate into any system with an I2C interface.

The onboard MCP2551 chip is a high-speed CAN transceiver and fault-tolerant device that serves as the interface between a CAN protocol controller and the physical bus. The MCP2551 provides differential transmit and receive capability for the CAN protocol controller and is fully compatible with the ISO-11898 standard.

The MCP2515 is a second-generation stand-alone CAN controller. It is pin and function compatible with the older MCP2510 and also includes upgraded features like faster throughput, databyte filtering, and support for time-triggered protocols.

The I2C CAN Bus Module is based on the high-performance MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver, providing a CAN Bus communication rate of up to 1Mb/s.

In addition, there is an Atmega168PA microcontroller on the board, you can also program it through a USB to Serial board, modify the firmware or write your application directly.

All Grove modules feature the signature Grove connector and a cable is included in the kit to connect the module to your Arduino easily.

This module is just one of the more than 300 Grove modules in the Grove ecosystem which covers a wide range of applications and should have everything you need for your next project.

Features

Cart to CAN-BUS communication
Up to 1Mb/s CAN Bus baud rate (default 500k)
Work with Arduino/BeagleBone board/Pi or any MCU that integrated with I2C
TX and RX led indicator for CAN Bus
4pin Grove connector to plug and play
3.3 / 5V working voltage
Easy-to-use Arduino library
Small size: 20x40 mm

Application

CAN Bus Monitor
Car Hacking

Technical Details

Grove Connector
Power and status led indicator

Blink all the time: CAN Bus init fail, Maybe the board was damaged
When receive data from I2C, blink one time

Send and Recv led indicator
3.5mm terminal to connect to CAN Bus (CAN_H & CAN_L)
120O registor.

Note

The picture shows the Serial CAN Bus Module, but it is also applicable to the I2C CAN Bus Module

Documents

I2C CAN Bus Module Docs

Arduino Library

Eagle Schematics

Part List

I2C CAN Bus Module x1
HY2.0 4-Pin Cable x1
Screw Driver x1

This product is listed in:

Breakouts & Modules>Others
Home Lab>Automotive
Breakouts & Modules>CAN Bus
