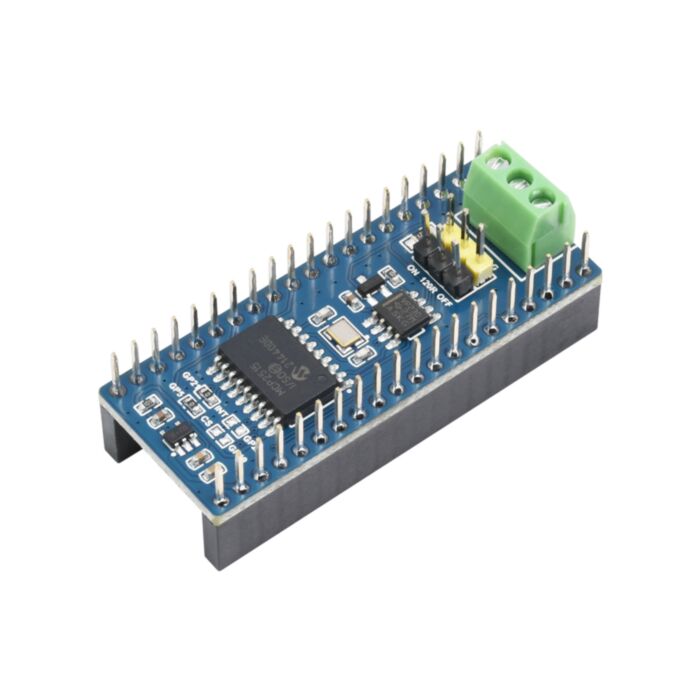

CAN bus Module (B) for Raspberry Pi Pico

SKU: WS-23775 Brand: Waveshare
CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI...
$28.40 AUD, inc GST
$25.82 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 27 and Dec 30

Quantity Discounts:

  • 10-25 $24.78 (exc GST)
  • 25+ $24.01 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

CAN bus Module (B) for Pico enabling reliable long range communication for Raspberry Pi Pico with other devices


Specifications

  • Operating voltage: 3.3V to 5V
  • CAN controller: MCP2515
  • CAN transceiver: SIT65HVD230DR
  • Communication bus: SPI
  • Baud rate: 5K to 1000 Kbps

What's On Board



  1. RT9013-33GB: 500mA low dropout, low noise, ultra-fast LDO
  2. MCP2515: Second generation standalone CAN controller
  3. SIT65HVD230DR: 3.3V CAN transceiver
  4. Terminal resistor selection
    ON: connected to 120R matching resistor
    OFF: disconnected from 120R matching resistor
  5. CAN bus terminal

Pinout



Dimensions



Resources

Shipping list

  • 1 x Pico-CAN-B
