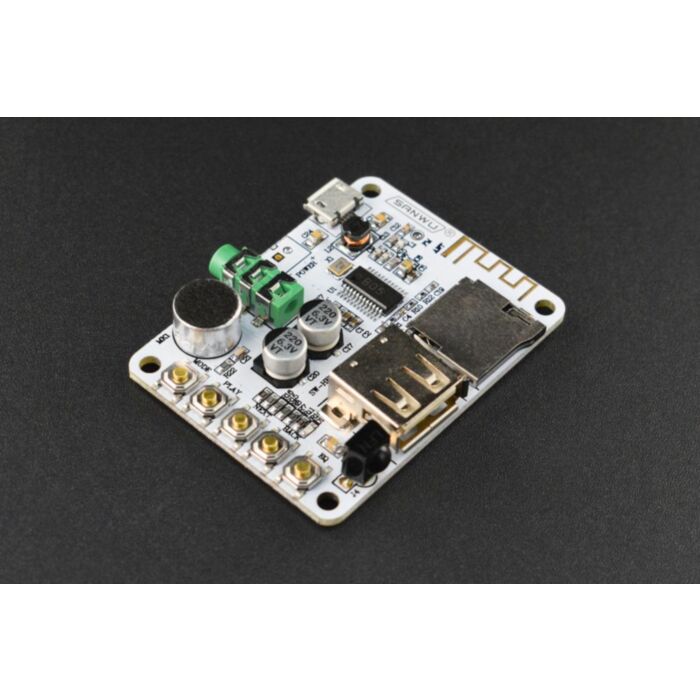

Bluetooth Audio Receiver and Playback Module (Bluetooth 4.0)

Rating:
80% of 100
SKU: TEL0108 Brand: DFRobot Guides (1)
This Bluetooth Audio receiver module includes a USB port and TF card slot. With a pre-amp output, you can drive headphones or a 3W speaker directly. You can also add an active power amplifier and connect a loudspeaker. The module supports MP3, WMA, WAV and lossless FLAC audio formats.
$25.40 AUD, inc GST
$23.09 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 04 and Jun 10

Quantity Discounts:

  • 10-25 $22.40 (exc GST)
  • 25+ $21.94 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.


This Bluetooth Audio receiver module includes a USB port and TF card slot. With a pre-amp output, you can drive headphones or a 3W speaker directly. You can also add an active power amplifier and connect a loudspeaker. The module supports MP3, WMA, WAV and lossless FLAC audio formats.

This module supports playback from TF  or USB flash drive.  All playback is controlled by buttons, and an sound equalizer has build-in to meet different favor.

With its compact form factor and 5V DC power requirement, this is an ideal module to add bluetooth feature to car or turn an old loudspeaker into a wireless bluetooth speaker.

Bluetooth Audio Receiver and Playback Module -DFRobot
New Version Update:

1. MIC port is reserved, so it can be used for recording or calling when the Bluetooth is connected;

2. Supports for IR remote control function, easy to control the board remotely.

Specification

  • Power Supply: 5 VDC  (MicroUSB)
  • Audio Decoding: MP3, WMA, WAV, FLAC
  • Audio Input: bluetooth, USB, TF card
  • Dimension: 40*53 mm/ 1.57*2.08 inches
  • Weight: 12g
  • Documents

    Parts List

  • Bluetooth Audio Receiver Module x1
  • Product Comments
