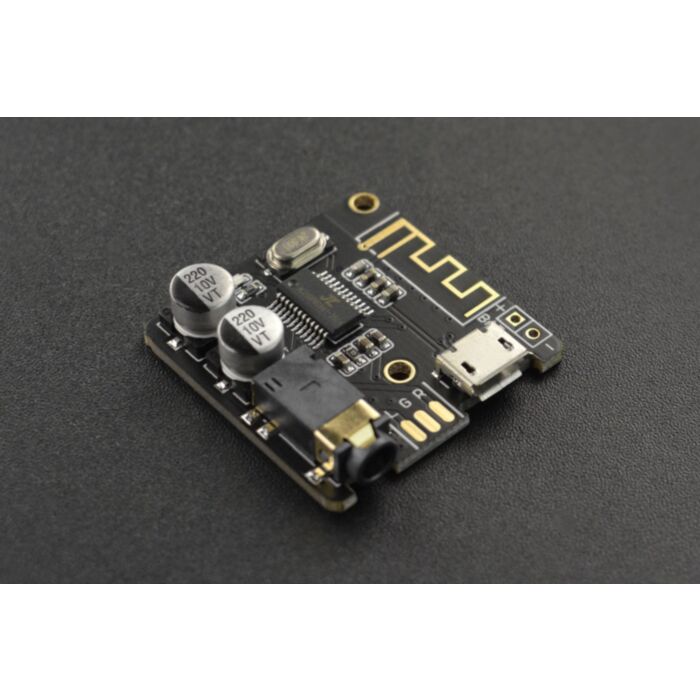

Bluetooth 5.0 Audio Receiver Board

Rating:
100% of 100
SKU: DFR0718 Brand: DFRobot Guides (1)
This is a compact and cost-effective Bluetooth 5.0 audio receiver module that supports automatic reconnect function. It can be powered by a micro USB or 3.7V lithium battery.
$4.90 AUD, inc GST
$4.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $4.32 (exc GST)
  • 25+ $4.24 (exc GST)
- +

12 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This compact and economical Bluetooth 5.0 audio receiver module is complete with automatic reconnect functionality. This versatile device can be powered by either a micro USB or a 3.7V lithium battery, and makes converting your old speakers to wireless Bluetooth speakers a breeze.

And that's not all - with the added feature of short circuiting the Sound Card pads on the back of the module and connecting it to a computer via USB cable, you can seamlessly transform this module into a powerful Sound Card.

Operating Instruction

After the power is switched on, the blue light flashes and the module enters Bluetooth mode. After playing the “Beep”, it goes into the pairing mode, waiting for pairing; Turn on the Bluetooth of a phone, “BT5.0-Audio”(module Bluetooth name) will be searched and displayed, click “BT5.0-Audio”to connect to the board. It connects successfully with a Beep. When the indicator is always on, you can play your music on the phone, and the indicator keeps slowly blinking when playing music.

Bluetooth 5.0 Audio Receiver Board - Scenario

Note

  1. Since there is no lithium battery protection circuit on the decoder board, it is recommended to use this module with a Lipo Charger board.
  2. Pay attention to the electrostatic protection. Since the Bluetooth chip is very sensitive to static electricity, you must discharge the static electricity on your hand to avoid causing damage to the chip when touching it with a bare hand.
  3. Bluetooth antenna signal is easy to be influenced by high-frequency or strong electromagnetic signal, so please try to keep the module away from radio transmitting devices, and this board should not be placed close to any metal objects.

Specification

  • Power Supply Voltage: 3.7V-5V
  • Bluetooth Version: 5.0 (Backward compatible with Bluetooth 4.2, 4.1, 4.0)
  • Transmission Distance: 15m (Visible)
  • Audio Decoding: WAV, APE, FLAC, MP3
  • Size: 30*30mm/1.18*1.18”

Shipping List

  • Bluetooth 5.0 Audio Receiver Board x1
