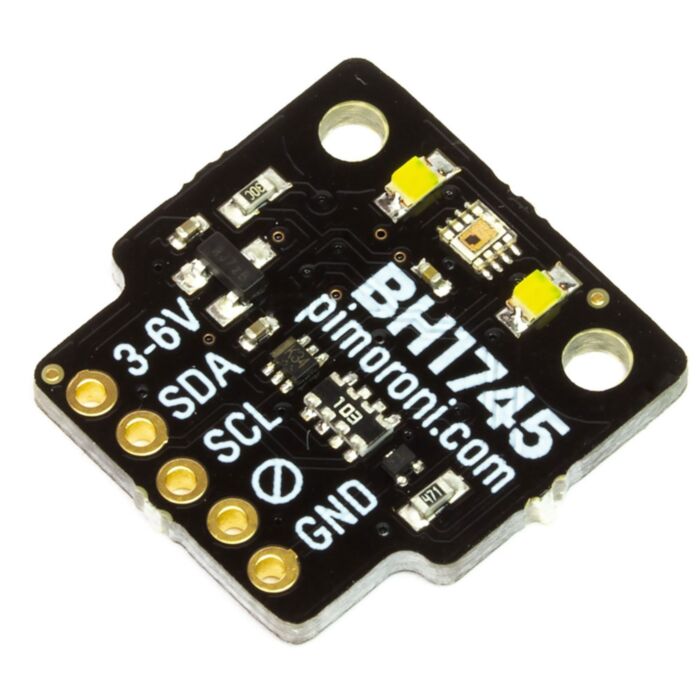

Pimoroni BH1745 Luminance and Colour Sensor Breakout

Rating:

100% of 100

SKU: CE05768 Brand: Pimoroni

A really sophisticated and accurate colour and luminance sensor breakout that's Raspberry Pi and Arduino compatible. As well as detecting RGB colour and light level, it has added bells and whistles like 50/60Hz light noise rejection, a wide detection range, and two illumination LEDs.

$19.95 AUD, inc GST

$18.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $17.59 (exc GST)
25+ $17.23 (exc GST)

This type of sensor is the same as you'd find in phones, tablets, and laptops where they're used to detect ambient light temperature and adjust the colour temperature of the display accordingly.

The BH1745 Luminance and Colour Sensor Breakout has an I2C interface and is 3.3V or 5V compatible. Like Pimoroni's other breakouts, they've designed it so that you can solder a piece of right-angle header onto it and then pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 6, 9).

It's also compatible with Pimoroni's fancy new Breakout Garden, where using breakouts is as easy just popping it into one of the six slots and starting to grow your project, create, and code.

Features

BH1745 Luminance and Colour Sensor Breakout
Two white illumination LEDs
Red, green, blue, and luminance measurements
0.005 to 40,000 lx detection range
50/60Hz light noise rejection
IR cut filter
16 bit data output
3.3V or 5V compatible
I2C interface, with address select via ADDR cuttable trace (0x38 or 0x39)
Reverse polarity protection
Raspberry Pi-compatible pinout (pins 1, 3, 5, 7, 9)
Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
Python library
Datasheet

Contains

BH1745 Luminance and Colour Sensor Breakout
1x5 male header
1x5 female right angle header

Software

Pimoroni put together a Python library that you can use to read data from your BH1745 Luminance and Colour Sensor Breakout, and an easy one-line installer to install everything.

software does not support Raspbian Wheezy.

Notes: The trace between the solder pads (marked ADDR) can be cut (carefully with a craft knife) to change the I2C address from the default of 0x38 to 0x39, meaning that you can use up to two sensors on the same Raspberry Pi or Arduino. If cut, the pads can be bridged again by soldering to reset the address to 0x38.
