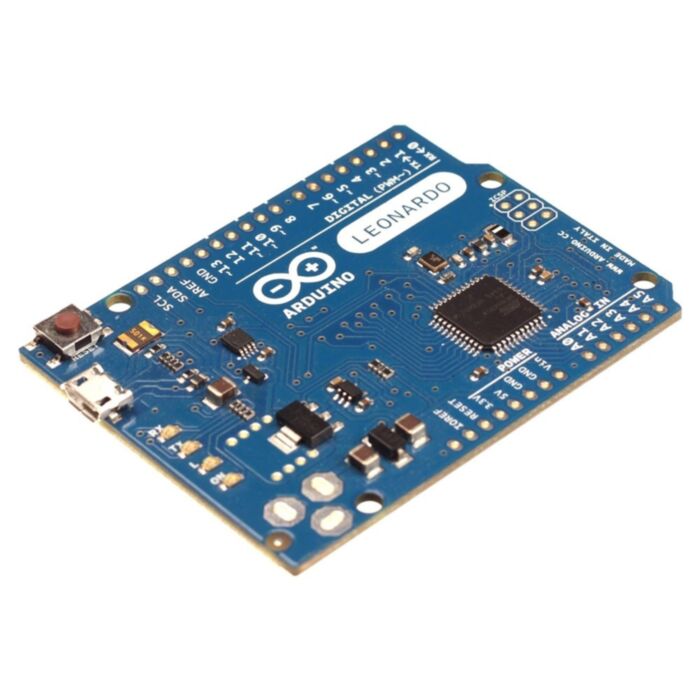

    Arduino Leonardo (Without Headers)

    SKU: A000052

    $28.41 AUD, inc GST

    More Views

    Arduino Leonardo (Without Headers)
    28.4053 AUD

    SKU: A000052

    $28.41 AUD, inc GST
    100 units ship in 7 to 14 days (delivered by Mon, 13th of Mar)

    Overview

    The Arduino Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

    The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board; these are detailed on the getting started page.

    This version of the Leonardo comes without headers..

    Technical Specifications

    Microcontroller ATmega32u4
    Operating Voltage 5V
    Input Voltage (recommended) 7-12V
    Input Voltage (limits) 6-20V
    Digital I/O Pins 20
    PWM Channels 7
    Analog Input Channels 12
    DC Current per I/O Pin 40 mA
    DC Current for 3.3V Pin 50 mA
    Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
    SRAM 2.5 KB (ATmega32u4)
    EEPROM 1 KB (ATmega32u4)
    Clock Speed 16 MHz

    If you want to give a closer look to this board we advise you to visit the official Arduino Leonardo page in the Product Section.
