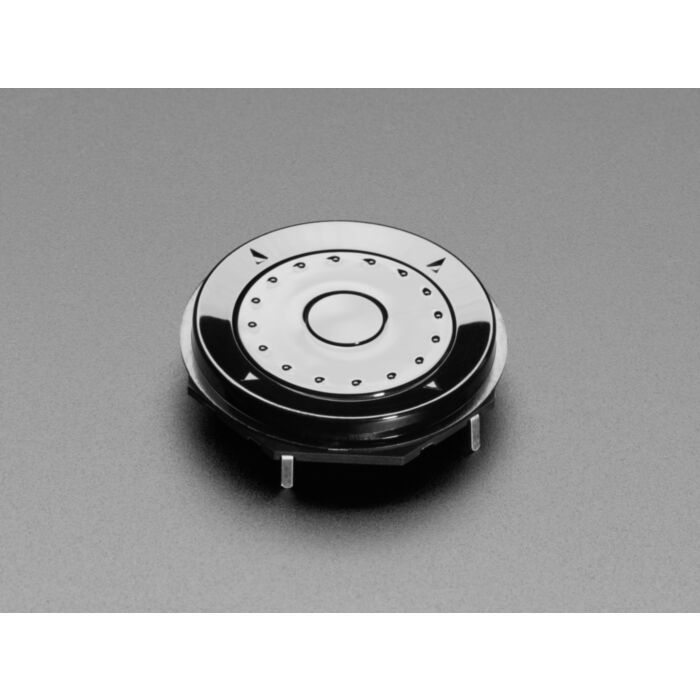

ANO Directional Navigation and Scroll Wheel Rotary Encoder

Rating:

100% of 100

SKU: ADA5001 Brand: Adafruit

This funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's a fancy mechanical kit...

$17.35 AUD, inc GST

$15.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $15.30 (exc GST)
25+ $14.98 (exc GST)

This funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's a fancy mechanical kit but has an intuitiveness that is hard to argue with - everyone knows how to use this kind of rotary encoder to scroll and select.

This product is just the encoder/button wheel element. The pin-out is a little odd, Adafruit really recommend Adafruit's breakout PCB to turn it into a breadboard-friendly device. But, you could solder to the pins if you like.

There are 5 buttons (up down left right center) and a rotary encoder wheel in the center. Use with any microcontroller that can read pulse-code rotary encoders!

Technical Details

Diagram
