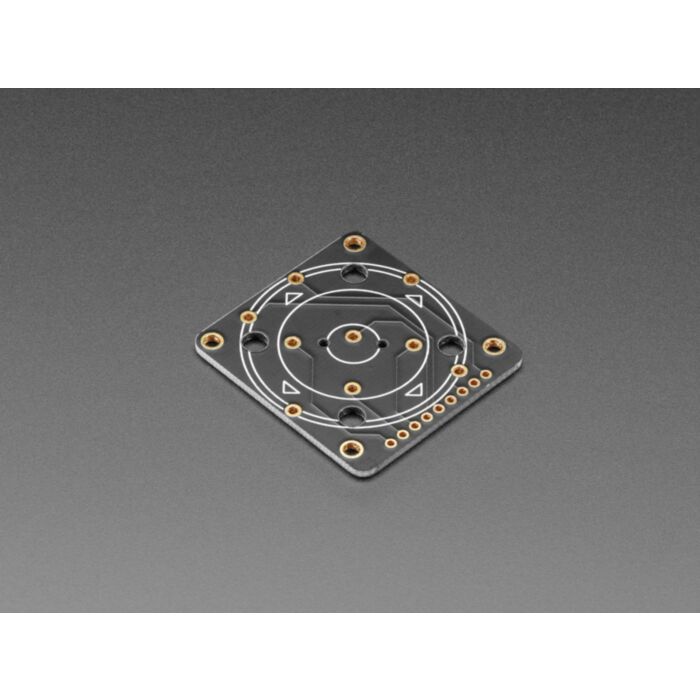

Adafruit ANO Rotary Navigation Encoder Breakout PCB

Rating:

100% of 100

SKU: ADA5221 Brand: Adafruit

The ANO rotary encoder wheel is a funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods....

$3.50 AUD, inc GST

$3.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 22nd of Apr

Quantity Discounts:

10+ $3.05 (exc GST)
25+ $2.96 (exc GST)

Recommended Essentials:

ANO Directional Navigation and Scroll Wheel Rotary Encoder

$18.75

The ANO rotary encoder wheel is a funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods. It's a nifty kit, but the pin-out is a little odd, so they made a handy breakout board that converts the funky pin set into a straight forward, breadboard-friendly header strip.

This is just the PCB for the ANO encoder, the encoder is NOT included! Pick one up here.

There's no pull-up or pull-down resistors on this PCB, and of course you'll need to solder the encoder onto the breakout. Then use your microcontroller's button and rotary encoder library/hardware support to interface with the pins.

You'll need 7 GPIO total: 5 buttons and 2 rotary encoder pins. There's also two COMmon pins, which you can set to ground or VCC - usually ground so that you can use the microcontroller internal pull-ups for the button/encoders. Note to make Adafruit's wiring simple, Adafruit's example code uses GPIO to the COM's and then sets then to outputs, but you can just wire them directly.

Technical Details

Product Dimensions: 38.0mm x 35.6mm x 1.6mm / 1.5" x 1.4" x 0.1"

Product Weight: 3.9g / 0.1oz
