Analog Feedback Servo

Rating:
100% of 100
SKU: ADA1404 Brand: Adafruit
It looks like a servo, it acts like a servo, but it's more than just a servo! Adafruit got a factory to custom-make these classic 'standard' sized hobby servos with a...
$31.60 AUD, inc GST
$28.73 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 06

Quantity Discounts:

  • 10-25 $27.86 (exc GST)
  • 25+ $27.29 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

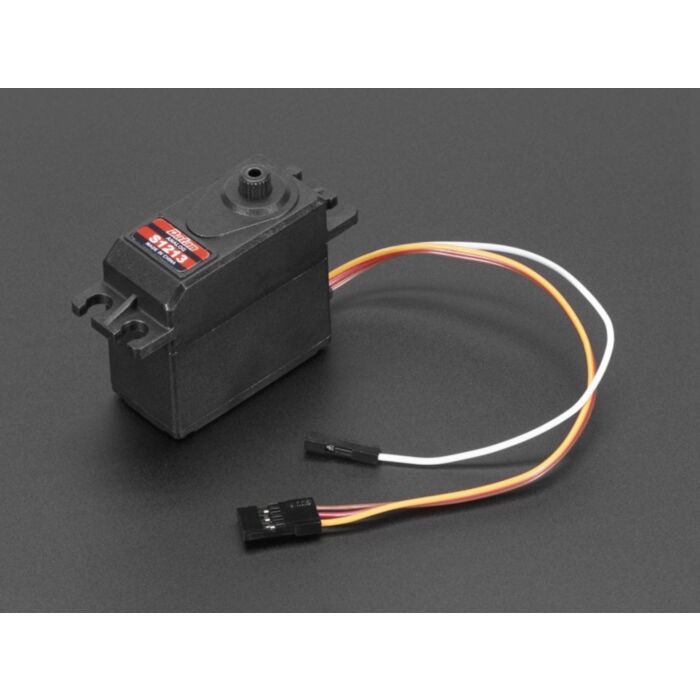

It looks like a servo, it acts like a servo, but it's more than just a servo! Adafruit got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.

Note that the default servo pulse widths (usually 1ms to 2ms) may not give you a full 180 degrees of motion. In that case, check if you can set your servo controller to custom pulse lengths and try 0.75ms to 2.25ms. You can try shorter/longer pulses but be aware that if you go too far you could break your servo!

Check out Adafruit's example Arduino sketch which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed. Comes with a range of horns as seen above.





Analog Feedback Servo (2:55)

Technical Details

  • Dimensions: 39.55mm / 1.5" x 39.55mm / 1.5" x 19.5mm / 0.7"
  • Max Dimensions: 55.36mm / 2.1" x 43.34mm / 1.7" x 19.5mm / 0.7"
  • Wire length (at least): 13cm / 5.1" long
  • Torque: 90.26 oz*in / 6.5 kg*cm
  • Speed: 0.21 sec/60°
  • Weight: 46 grams
  • Dual ball bearing
  • Plastic gearbox
  • Spline Count: 23
    RoHS 2 2011 65 EU Compliant
