Aluminum Flex Shaft Coupler - 5mm to 8mm

SKU: ADA1176

$9.40 AUD, inc GST
$8.55 AUD, exc GST

More Views

Aluminum Flex Shaft Coupler - 5mm to 8mm
9.4 AUD

SKU: ADA1176

$9.40 AUD, inc GST
$8.55 AUD, exc GST
1 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

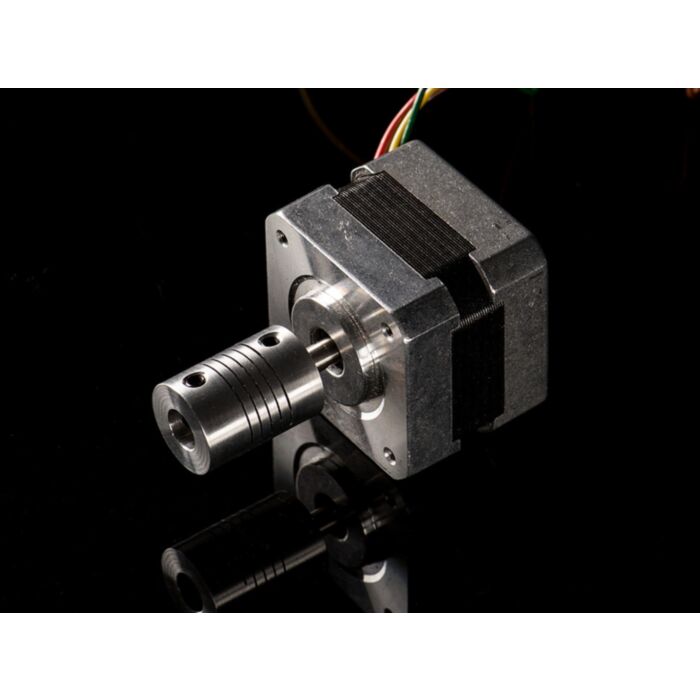

Connect this to that with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.

This coupler will connect a 5mm diameter shaft to an 8mm diameter shaft. A perfect add on for Adafruit's stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.

Aluminum Flex Shaft Coupler 5mm to 8mm (0:26)

Technical Details

  • Measures 1" x 0.7" diameter / 25mm x 18mm diameter
  • 5mm inner diameter / 8mm inner diameter
  • 15 grams

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Matthew verified purchaser
    Rating
    100

    After playing around with cheap import couplers, purchased these from core, and it is chalk and cheese. I will never scout the interned to save a few bucks, straight to core-electronics, guaranteed to have the best quality products.
    No affiliation, just a very satisfied customer. Keep up the great work core-electronics team!! (Posted on 11/10/2018)
