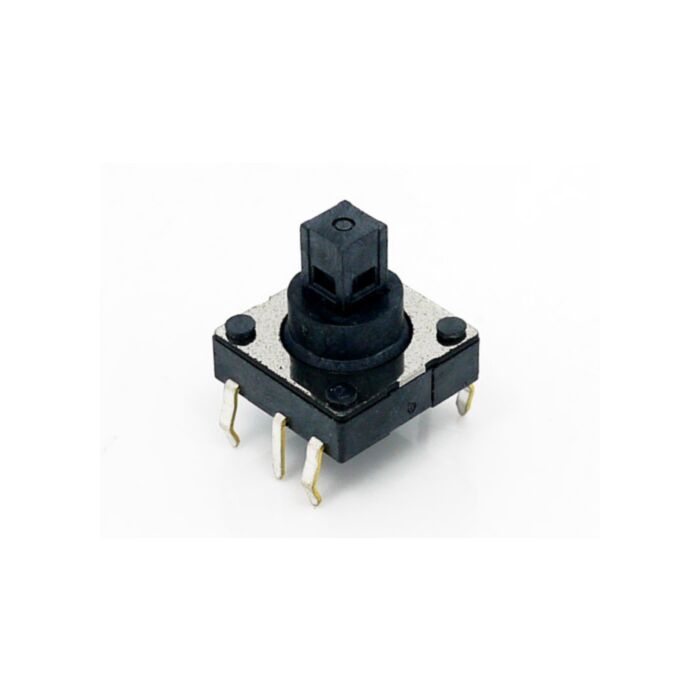

ALPS SKQU 4 direction Joystick w Switch (Seeed Studio)

Rating:
100% of 100
SKU: SS311110004 Brand: Seeed Studio
Model No. : SKQUCAA010 TypeSnap-in Operating force4-direction1.57N Center push3.14N Travel4-direction0.4mm Center push0.2mm Operating life (5mA 5V DC)100,000...
$4.45 AUD, inc GST
$4.05 AUD, exc GST

Quantity Discounts:

  • 10-25 $3.88 (exc GST)
  • 25+ $3.76 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Model No. :  SKQUCAA010

TypeSnap-in
Operating force4-direction1.57N
Center push3.14N
Travel4-direction0.4mm
Center push0.2mm
Operating life
(5mA 5V DC)
100,000 cycles for each direction
Initial contact resistance500mΩ max.
Minimum packing unit (pcs.)1,000

Operating temperature range-30°C to +85°C
Ratings (max.)/(min.) (Resistive load)50mA 12V DC/10µA 1V DC
Electrical performanceDirectional resolution4-direction
Insulation resistance100MΩ min. 100V DC
Voltage proof250V AC for 1 minute
Mechanical performanceDirection application force1.57(+0.39, -0.69)N
Push application force3.14±0.59N
Robustness of terminal49N for 1 minute
Solder heat resistanceManual soldering350°C max. 3s max.
Dip soldering260°C max. 5s max.
DurabilityVibration10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively
Operating lifeDirections100,000 cycles
Center push100,000 cycles
Environmental performanceCold-30±2°C for 96h
Dry heat80±2°C for 96h
Damp heat60±2°C , 90 to 95%RH for 96h


Please refer to datasheet for more details.
