Adafruit UPDI Friend - USB Serial UPDI Programmer

SKU: ADA5879 Brand: Adafruit

UPDI stands for Unified Program and Debug Interface, but this board is so smol and cute that we will call it the Unusually Playful Device Interfacer and...

$13.95 AUD, inc GST

$12.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 6th of Dec

Quantity Discounts:

10-25 $12.30 (exc GST)
25+ $12.05 (exc GST)

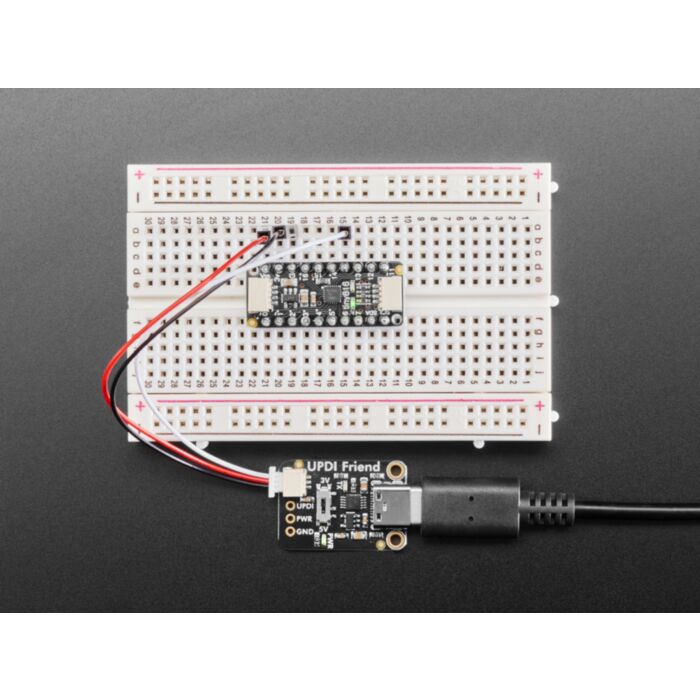

UPDI stands for Unified Program and Debug Interface, but this board is so smol and cute that we will call it the Unusually Playful Device Interfacer and pat its head when it does a good job. It's designed to make programming modern ATtiny chips very easy because it has 3V or 5V power and logic select, power and transmit indicator LEDs, and a quick cable for poking into a breadboard.

Adafruit have been working a lot with ATtiny816, ATtiny817 and ATtiny1616 chips lately, as for Adafruit's seesaw boards. And Adafruit are often needing to program them with a CP2102-based breakout with a 1K resistor soldered between the RX and TX pins. But Adafruit were hankering for a nicer programmer!

This UPDI Friend makes programming such chips very easy:

Select between 3V or 5V power and logic - the 3V regulator can source up to 500mA so it can run even big projects.
CH340E USB Serial converter chip with cross-platform drivers
1K Loop-back Resistor between RX and TX
USB Type C for data and power connection to any computer
JST SH cable included for quick plugging into a breadboard - you can get another JST SH 3-pin cable with sockets or with pin header here.
0.1" spaced breakout holes for custom connections.
Green power OK LED
Red serial activity LED
Inspired by this open-source hardware design from Stefan Wagner!

Adafruit use Arduino IDE with the megaTinyCore board support package installed, simply select "Serial UPDI" as the programmer type, Adafruit use 230Kbps but 56Kbps is also good.

Technical Details

Product Dimensions: 26.4mm x 17.8mm x 4.9mm / 1.0" x 0.7" x 0.2"

Product Weight: 2.3g / 0.1oz

This product is listed in:

Programmers>Other
