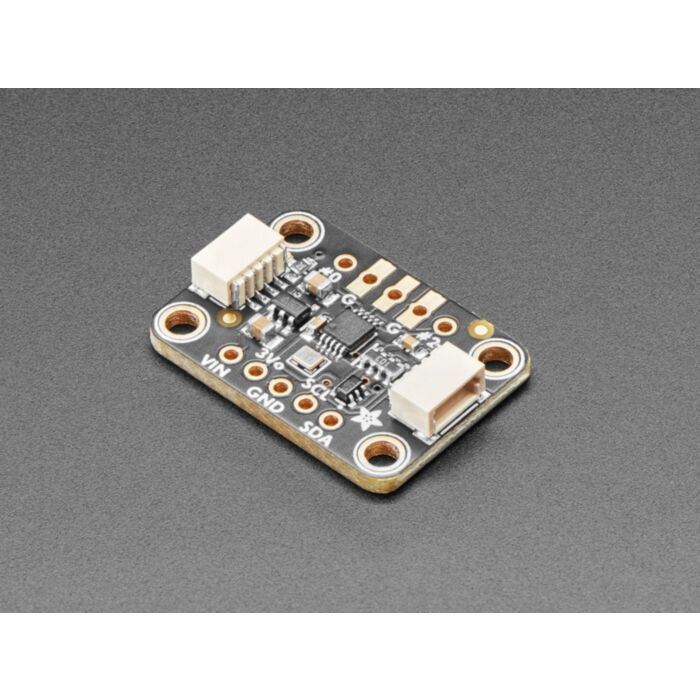

Adafruit Si5351A Clock Generator with STEMMA QT - 8KHz to 160MHz

SKU: ADA5640 Brand: Adafruit
Never hunt around for another crystal again, with the Si5351A clock generator breakout from Adafruit! This chip has a precision 25MHz crystal reference...
$16.10 AUD, inc GST
$14.64 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 04 and Jun 07

Quantity Discounts:

  • 10-25 $14.05 (exc GST)
  • 25+ $13.61 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Never hunt around for another crystal again, with the Si5351A clock generator breakout from Adafruit! This chip has a precision 25MHz crystal reference and internal PLL and dividers so it can generate just about any frequency, from <8KHz up to 150+ MHz.

The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLL's and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional edge-launch SMA connector for output #1. (If you need SMA-connector outputs for all three ports, check out the non-QT breakout here)

To get you going fast, Adafruit spun up a custom-made PCB in the STEMMA QT form factor, making it easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the Si5351 or to chain it with a wide range of other sensors and accessories using a compatible cable. Onboard 3.3V LDO and level shifters means its ready for use with 3V or 5V power and logic!

Best of all, Adafruit even have a great tutorial and library to get you started! Adafruit's code is designed for use with the Arduino-compatible microcontrollers and CircuitPython/Python using I2C support.

Technical Details

Si5351 specifications:

  • Generates up to 3 non-integer-related frequencies from 8 kHz to 160 MHzI2C user definable configuration ? Exact frequency synthesis at each output (0 ppm error)
  • Highly linear VCXO
  • Low output period jitter: 100 ps pp
  • Configurable spread spectrum selectable at each output
  • Operates from a low-cost, fixed frequency crystal: 25 MHz on board
  • Supports static phase offset
  • Programmable rise/fall time control
  • Glitchless frequency changes
  • Excellent PSRR eliminates external power supply filtering
  • Very low power consumption
  • Adjustable output-output dela
  • PCIE Gen 1 compliant
  • Supports HCSL compatible swing

Product Dimensions: 25.3mm x 17.7mm x 4.7mm / 1.0" x 0.7" x 0.2"

Product Weight: 1.7g / 0.1oz

    RoHS 2 2011 65 EU CompliantRoHS 2 2015 863 EU Compliant
