Adafruit NeoPixel UV LED Strip with 32 LED/m - White PCB - 1M

SKU: ADA3851 Brand: Adafruit
What new iteration of NeoPixel strip is this? Roll out the black light and disco ball! It's an Adafruit NeoPixel Ultraviolet Strip with 32 LEDs per meter! Each order...
$43.60 AUD, inc GST
$39.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $38.45 (exc GST)
  • 25+ $37.65 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

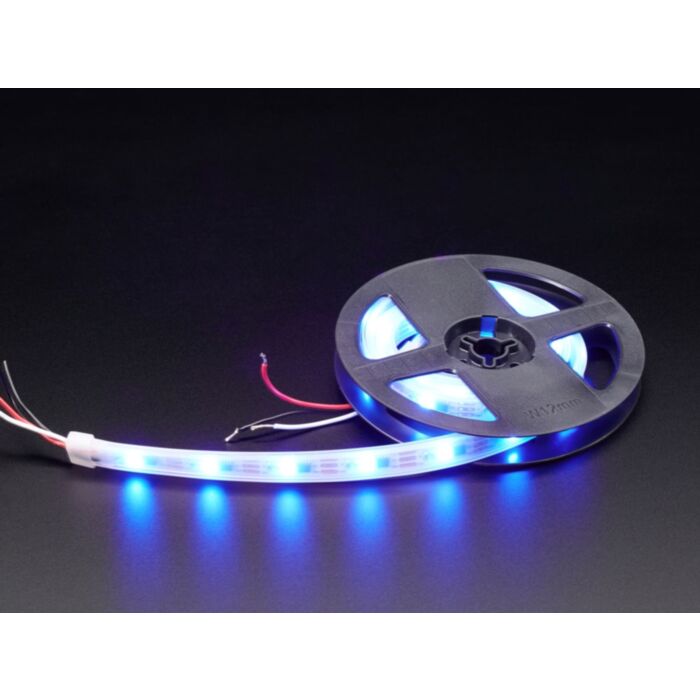

What new iteration of NeoPixel strip is this? Roll out the black light and disco ball! It's an Adafruit NeoPixel Ultraviolet Strip with 32 LEDs per meter! Each order comes as a single one meter long strip. If you order multiple meters, you'll get that many individual 1 meter pieces.

The strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters. There are cut-lines every 3cm (1 LED each). Solder to the 0.1" copper pads, and you're good to go. Adafruit have a 5V/2A supply that should be able to drive 1 or more meters (depending on use) and a 5V/10A supply that can drive 5 meters (or more, if you are not lighting up all the LEDs at once) You must use a 5V DC power supply to power these strips; do not use higher than 6V, or you will destroy the entire strip. Yikes!

Comes with a 2-pin JST SM connector on each end.

To wire up these strips we suggest picking up some JST SM plug and receptacle cables. Please note, Adafruit try hard to get consistent wiring between batch of strip but Adafruit can't guarantee it. Please double check which side is the input and which is the output by looking at the strip for the directional arrows and pin labeling

You can use these with any 'NeoPixel' or WS2812 driver (FastLED, etc). The R, G and B channels translate to the three individual UV diodes. so they recommend you pretty much just set all three channels to the same value, ranging from (0, 0, 0) to (255, 255, 255) to change the brightness of the three UV LEDs inside each 5mm x 5mm package.
