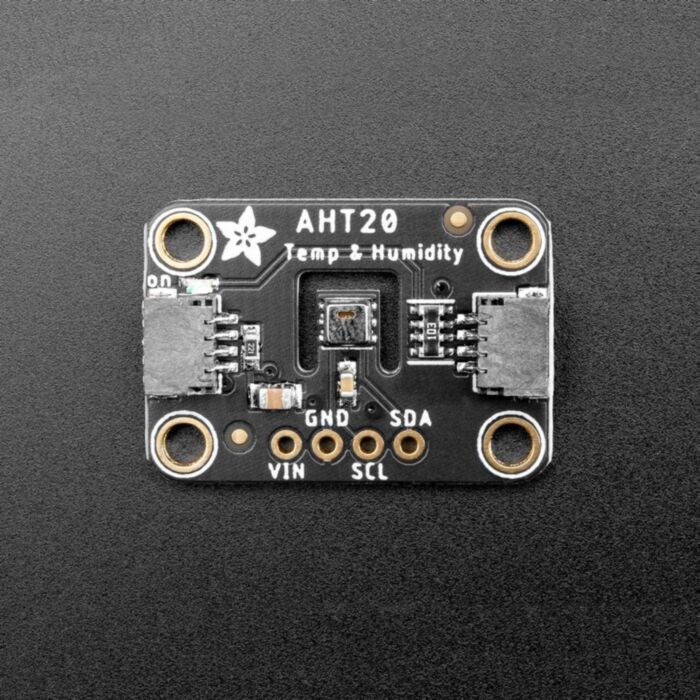

Adafruit AHT20 - Temperature & Humidity Sensor Breakout Board - STEMMA QT / Qwiic

SKU: ADA4566 Brand: Adafruit
The AHT20 is a nice but inexpensive temperature and humidity sensor from the same folks that brought Adafruit the DHT22. You can take sensor readings as often as you like, and it uses standard I2C so its super easy to use with any Arduino or Linux/Raspberry Pi board.
$9.05 AUD, inc GST
$8.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $7.98 (exc GST)
  • 25+ $7.82 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The AHT20 is a nice but inexpensive temperature and humidity sensor from the same folks that brought Adafruit the DHT22. You can take sensor readings as often as you like, and it uses standard I2C so its super easy to use with any Arduino or Linux/Raspberry Pi board.

This sensor has a typical accuracy of +- 2% relative humidity, and +-0.3 °C at 20-80% RH and 20-60 °C. There is only one I2C address so it's not a good option when you need multiple humidity sensors.

As with all Adafruit breakouts, Adafruit have done the work to make this handy temperature-and-humidity super easy to use. Adafruit have put it on a breakout board with the required support circuitry and connectors to make it easy to work with and is now a trend Adafruit have added SparkFun Qwiic compatible STEMMA QT JST SH connectors that allow you to get going without needing to solder. Just use a STEMMA QT adapter cable, plug it into your favorite microcontroller or Blinka supported SBC and you're ready to rock! QT Cable is not included, but Adafruit have a variety in the shop

Check out Adafruit's learning guide which has schematics, diagrams, libraries, and more!

Technical Details

Specifications:

  • Use with 3.3V or 5V power/logic
  • I2C address 0x38
  • Operational Temperature range: -40 to 85 °C (+-1 °C typical accuracy over entire range)
  • Operational Relative Humidity range: 0 to 100 RH% (+-3 % typical accuracy over entire range)

Revision History:

  • As of September 16, 2022 - this sensor breakout may come with black or tan STEMMA QT connectors - they work the same!
      RoHS 2 2011 65 EU Compliant
      RoHS 2 2015 863 EU Compliant
