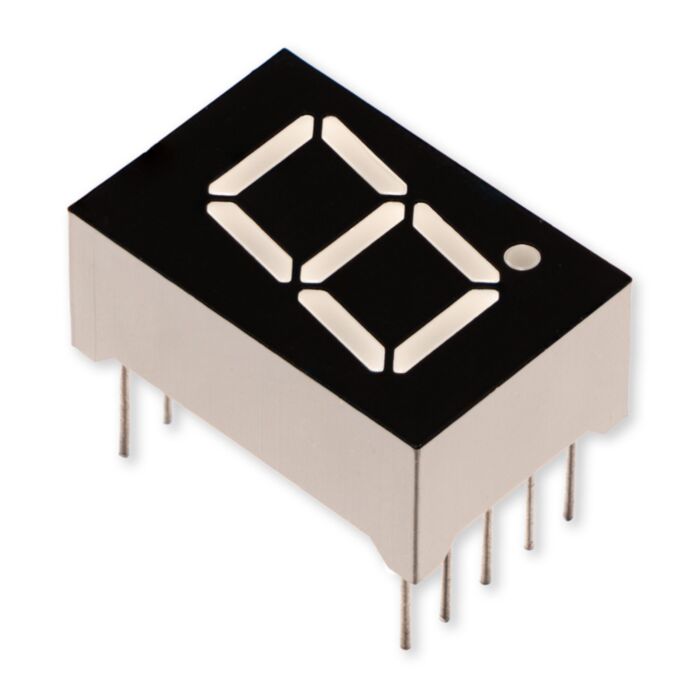

7-Segment Display (Red) Breadboard Compatible

SKU: CE09992 Brand: Core Electronics

This is a breadboard-friendly 0.5" single-digit, 7-segment LED display with a common cathode configuration.

$1.00 AUD, inc GST
$0.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 8th of Apr

- +

15 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This segment display is a breadboard-friendly 0.5" single-digit, 7-segment LED display with a common cathode configuration. Its compact design and straightforward operation make it perfect for electronics projects like clocks, counters, and timers. Thanks to its pin layout, it can be easily aligned across the center of a breadboard for multi-digit displays.

Features:

  • Breadboard Friendly Design:
    The pins are positioned along the top and bottom of the display, making it easy to place multiple units side by side across the centre section of a breadboard for seamless multi-digit displays.

  • Common Cathode Configuration:
    Simplifies understanding and usage. When the logic output is high (Vdd), the segment is on—making it more intuitive than common anode displays, which require a low (GND) signal to activate.

  • Compact Size:
    Measuring 19mm long (top to bottom), this display fits comfortably across the middle section of a breadboard, leaving two free pins on each side for easy wiring.

  • Low Forward Voltage:
    With a forward voltage of 2V, the display works smoothly with both 3.3V and 5V logic levels when used with appropriate series resistors.

Technical Specifications:

  • Display Type: 7-segment, single digit
  • Digit Size: 0.5 inch
  • Colour: Red (Peak Emission: 633 nm)
  • Configuration: Common Cathode
  • Forward Voltage: 2.0V (Typical)
  • Max Continuous Current: 20 mA per segment
  • Operating Temperature: -20°C to 80°C
  • Dimensions: 19mm height
