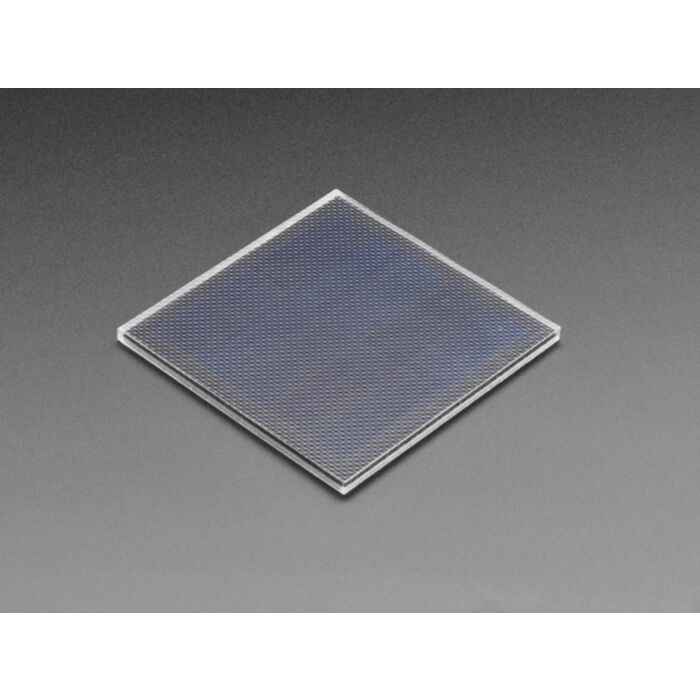

5V 0.6W Mini Solar Panel - ETFE - Voltaic - P123

SKU: ADA5856 Brand: Adafruit
These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV-resistant, and...
$23.70 AUD, inc GST
$21.55 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 07

Quantity Discounts:

  • 10-25 $20.68 (exc GST)
  • 25+ $20.04 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV-resistant, and they use 10 high-efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V, so they call this a "5V" panel. Note the datasheet has it down as a 6V panel, because at max-power-point it will give you 6.1V

They output approximately 6V at 120 mA peak via two solder-able pads on the back. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.

Unlike the larger panels, these don't come with a connector. Instead, there are two pads on the back. To connect, Adafruit recommend soldering two wires and attaching a 2.1mm terminal block. (Or you can cut off the alligator clips from a 2.1mm-to-clip adapter)

If you want to use this to charge a battery or run your project, check out Adafruit's optimized Solar Lithium Ion/Polymer charger!

Technical Details

Features

  • Waterproof (IP67)
  • UV resistant (5-7 year life)
  • Durable and lightweight
  • High-efficiency monocrystalline cells: 22+%
  • 2x Solder Pads

Size and Weight

  • 65.5mm x 65.5mm x 3.1mm
  • 20.4 grams

Construction

  • Matte ETFE coating
  • 1.5mm double-sided PCB

Warranty

  • 2-year warranty on solar panels
  • For more warranty information, see the warranty guide
RoHS 2 2011 65 EU Compliant
