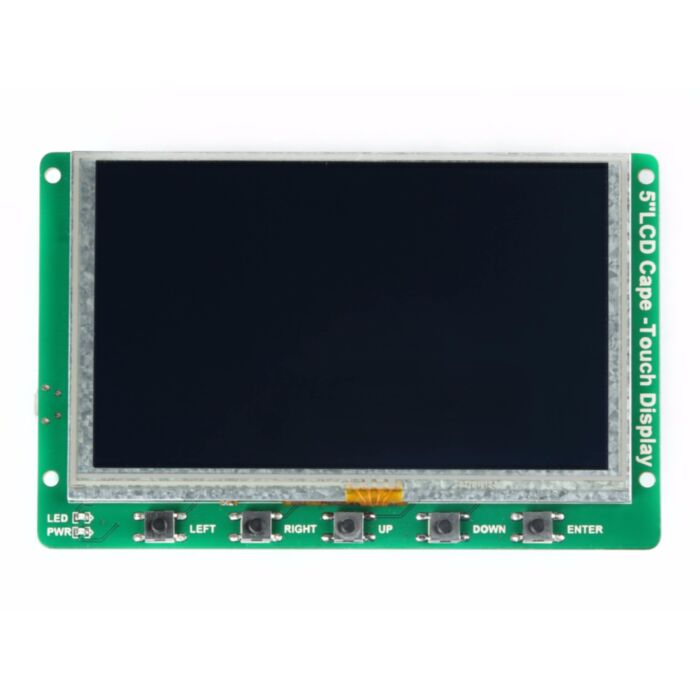

This cape features a compact 5 inch LCD for Beaglebone Green or Beaglebone Black. On size it’s a bit smaller than the 7 inch version, but it still has a graphical display at 800x480 resolution and a layer of 4-wired resistive touchscreen for user interactions. It’s very easy to set it up as you only need to attach it directly onto your BBG/BBB through the 2x46 pin headers, which will provides everything the cape requires such power and display signals. Also as an alternative, you can power the cape through the built-in micro USB on the back.
Below the screen is an array of push buttons - LEFT, RIGHT, UP, DOWN and ENTER, which provides an alternative way to interact with your screen. Besides, two LEDs are used to indicate Power and User status,
This LCD cape is only compatible with SeeedStudio Beaglebone Green and Beaglebone Black.
Resolution up to 800 x 480
5 push buttons includes LEFT, RIGHT, UP, DOWN and ENTER
Supports WinCE / Android 4.2 by user-define driver
ULP (Ultra Low Power) consumption backlight
4x 3mm mounting holes
Built-in USB for powering
Voltage: 5V DC
Current: 110mA (Test conditions: Beaglebone Green not include)
Power: 0.55W (Test conditions: Beaglebone Green not include)
1 x 5 Inch BeagleBone Green LCD Cape with Resistive Touch
Documentation and Resources:
