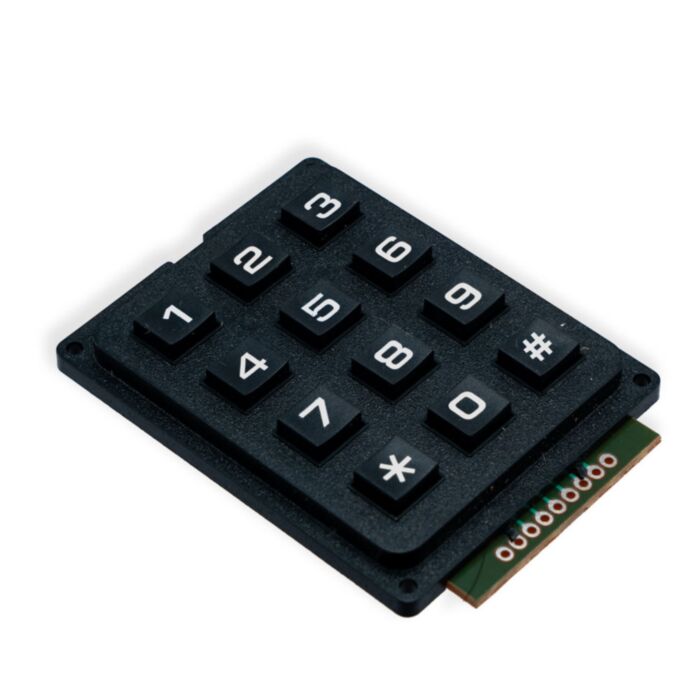

4x3 Button matrix keypad

Maximize your input possibilities with our 4x3 Button Matrix Keypad! Featuring numeric, star, and hash keys, this versatile keypad conserves IO while adding functionality to any project. Perfect for Makers looking to streamline their designs.

$6.30 AUD, inc GST

$5.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $5.61 (exc GST)
15+ $5.45 (exc GST)

Add lots of buttons with few IO, grab this numerical keypad (with star and hash keys), and add it to your next project!

The output of the keypad is handled with a 3-column, 4-row matrix output, scanning for shorts between the two to determine which button is pressed.

Features

Same layout as a phone keypad, make it your own with tape and markers!
M2 Mounting holes (46mm x 59mm)

Specifications

Dimensions: 51mm x 69mm x 10mm

Examples

Raspberry Pi Pico - Micropython

from machine import Pin
import utime

# Defining the GPIO connected to keypad rows and columns (ordering important)
row_list = [10, 15, 14, 12]
col_list = [11, 9, 13]

for x in range(0, 4):
  row_list[x] = Pin(row_list[x], Pin.OUT)
  row_list[x].value(1)

for x in range(0 ,3):
  col_list[x] = Pin(col_list[x], Pin.IN, Pin.PULL_UP)

# Define the symbol associated with each key
key_list = [["1", "2", "3"],\
      ["4", "5", "6"],\
      ["7", "8", "9"],\
      ["*", "0", "#"]]

# Scan the keypad to detect keypresses
def keypad(col, row):
  for r in row:
    r.value(0)
    result = [col[0].value(), col[1].value(), col[2].value()]
    if min(result) == 0:
      key = key_list[int(row.index(r))][int(result.index(0))]
      r.value(1)
      return (key)
    r.value(1)

while True:
  key = keypad(col_list, row_list)
  if key != None:
    print("key: "+key)
    utime.sleep(0.3)
