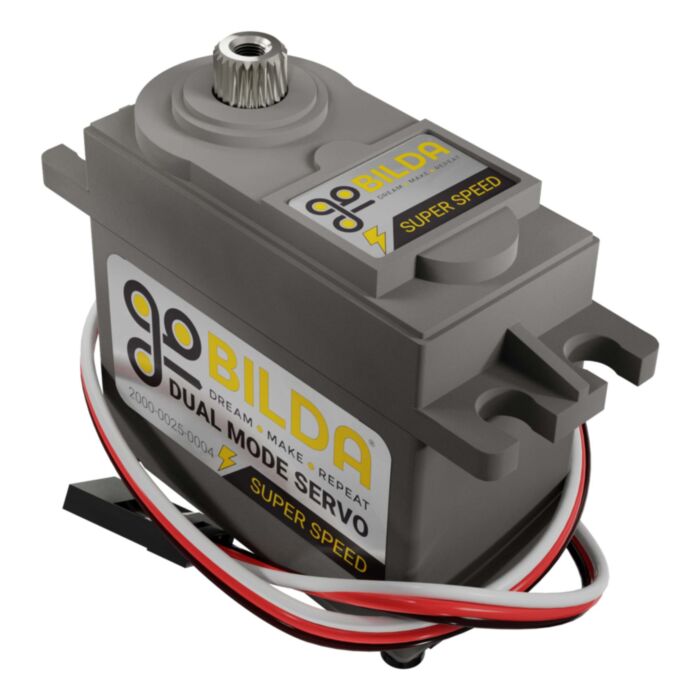

2000 Series Dual Mode Servo (25-4, Super Speed)

SKU: GB-2000-0025-0004 Brand: goBilda

Meet the Dual Mode ‘SUPER SPEED’ Servo. This servo is essentially an even faster version of the 2000-0025-0003 ‘SPEED’ Servo, reaching.....

$55.70 AUD, inc GST

$50.64 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

6-12 $48.61 (exc GST)
12+ $47.09 (exc GST)

Meet the Dual Mode ‘SUPER SPEED’ Servo. This servo is essentially an even faster version of the 2000-0025-0003 ‘SPEED’ Servo, reaching speeds of up to 290RPM!

Just like the other 2000 Series servos, this servo boasts two different modes which allow it to fill a variety of roles on your robot or project. In the default mode, the servo is able to rotate 300 degrees while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Downloads

STEP File

Specs

Weight	58g
Gear Ratio	67:1
Output Shaft Style	25 Tooth Spline
Voltage Range	4.8V ~ 7.4V
No-Load Speed (4.8V)	0.055 sec/60° (180RPM)
No-Load Speed (6.0V)	0.043 sec/60° (230RPM)
No-Load Speed (7.4V)	0.035 sec/60° (290RPM)
Stall Torque (4.8V)	4.0 kg.cm (55 oz-in)
Stall Torque (6.0V)	4.7 kg.cm (65 oz-in)
Stall Torque (7.4V)	5.4 kg.cm (75 oz-in)
No-Load Current (4.8V)	190mA
No-Load Current (6.0V)	200mA
No-Load Current (7.4V)	230mA
Stall Current (4.8V)	2000mA
Stall Current (6.0V)	2500mA
Stall Current (7.4V)	3000mA
Max PWM Range (Default)	500 - 2500µsec
Max PWM Range (Continuous)	1000 - 2000µsec
Travel per µsec (Default)	0.15°/µsec
Max Travel (Default)	300°
Pulse Amplitude	3-5V
Direction	Clockwise w/ Increasing PWM Signal
Deadband Width	4µsec
Motor Type	Brushed DC
Feedback Style	5KO Potentiometer
Output Shaft Support	Dual Ball Bearing
Gear Material	Steel
Wire Length	300mm
Wire Gauge	22 AWG
Connector Type	3-Pos TJC8 Servo Connector [MH-FC]
