2.3kg Serial Bus Servo, Two-way Feedback

Easily control up to 253 serial bus servos through a single UART channel—perfect for complex robotics or automation projects. Just a heads-up: while you can technically run that many servos, make sure your power supply can keep up! (Power-hungry servos can drain fast.) Note: Servo driver board not included.

Enjoy smooth 300° rotation for precise angular control in Servo mode, making it great for applications that demand flexibility and accuracy.

Built with a smart combo of high-precision copper and steel gears, this setup keeps operating noise low while delivering excellent mechanical stability and performance.

And with real-time two-way feedback, you get live updates on position, load, speed, and input voltage—so you're always in the loop.

Specifications

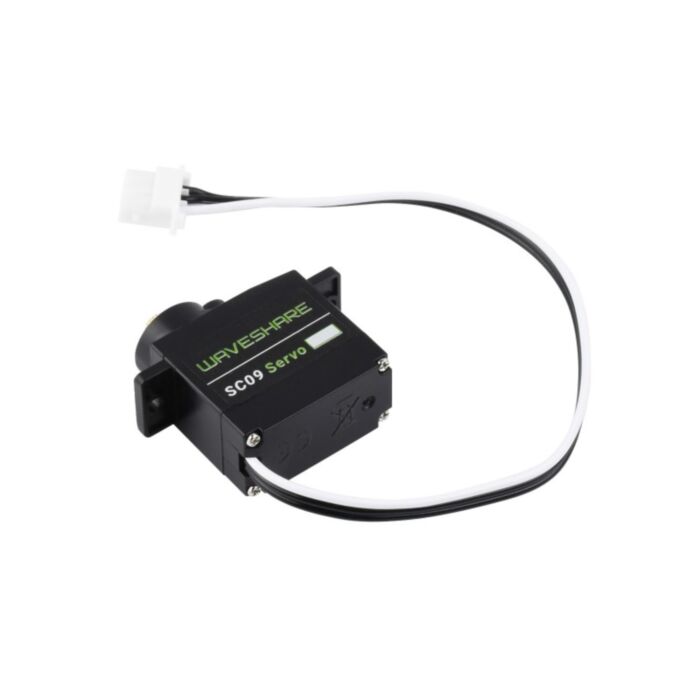

• Model: SC09 Serial Bus Servo

• Torque:

  • Rated: 0.7 kg·cm @ 6V

  • Max: 2.3 kg·cm @ 6V

• No-Load Speed: 0.1 sec/60° (100 RPM) @ 6V

• No-Load Current: 150 mA @ 6V

• Locked-Rotor Current: 1.0 A

• Operating Voltage: 4.8V – 8.4V

• Rotation Angle: 300° (0~1024)

• Center Position: 150° (511)

• Position Sensor Resolution: 0.293° (300° / 1024 steps)

• Mechanism Limited Angle: No limit

• Gear: High precision metal gears

• Motor Type: Iron core motor

• Bearing Type: Sliding bearing

• Output Shaft: 20T / Outer Diameter 3.95 mm

• Encoder Type: Carbon film potentiometer

• Dimensions: 23.2 × 12.0 × 25.5 mm

• Servo Cable Length: 15 cm

• Control Signal: Digital

• Protocol: Half-duplex asynchronous serial communication

• Baud Rate: 38,400 bps ~ 1 Mbps

• ID Range: 0 ~ 253

• Operating Temperature: -15°C ~ 70°C

• Storage Temperature: -30°C ~ 80°C

• Real-time feedback on:

  • Position

  • Load

  • Speed

  • Input Voltage

Dimensions

Resources

• Wiki
